Mitsubishi Elevator Light Curtain MSG-154P-M7CB MSG-154RPL-M7C ESXC-2000P

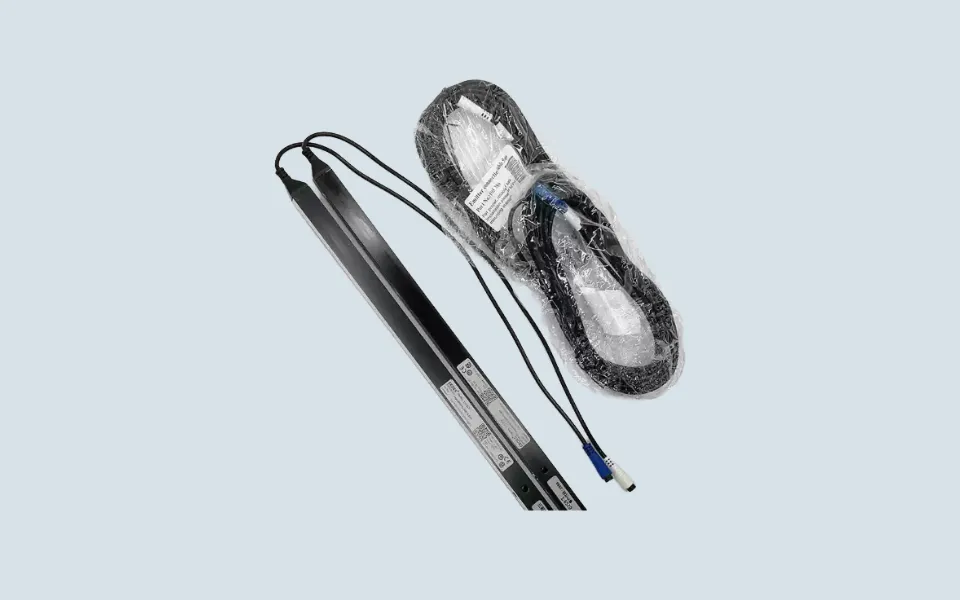

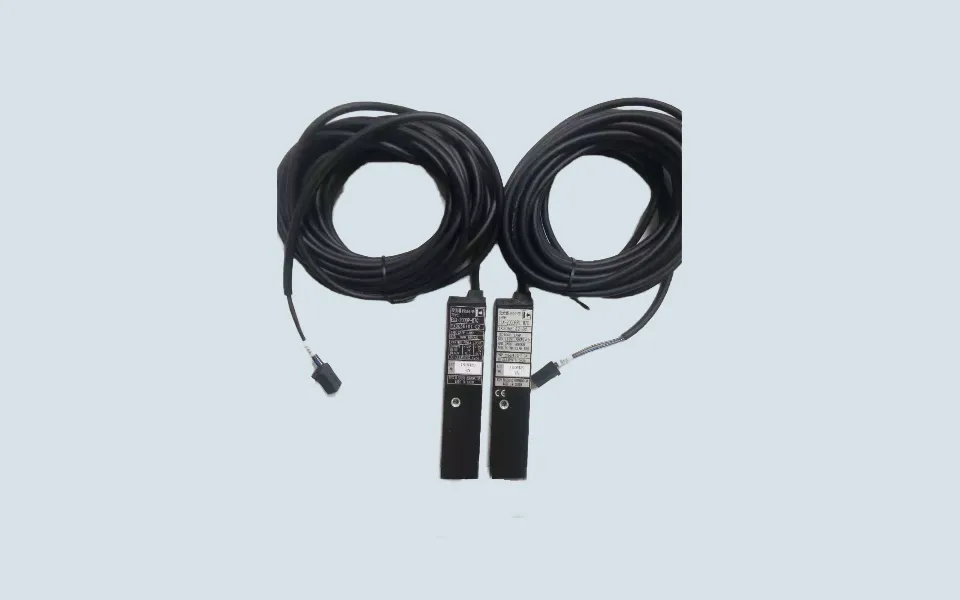

MSG-154P-M7CB and MSG-154RPL-M7C are light curtain transmitter and receiver units commonly used in Mitsubishi elevator door protection systems.

These components work together to create an infrared detection field across the elevator entrance, helping prevent door closing when passengers or objects are detected within the doorway area.

The system is commonly associated with:

• elevator door protection
• passenger safety detection
• infrared obstacle sensing
• automatic door reopening functions
• ESXC-2000P safety systems

MSG-154 series light curtains are widely used in Mitsubishi elevator installations where stable door safety performance is required.

Commonly requested matching components include:

• MSG-154P-M7CB
• MSG-154RPL-M7CB
• MSG-154RPL-M7C
• ESXC-2000P
• ESX-2000 series

Please confirm transmitter and receiver matching before ordering.

A Door Fault That Looked Like a Controller Problem

During maintenance work in a shopping mall project, technicians received reports that elevator doors occasionally remained open longer than expected.

At first, attention focused on the door controller.

However, further testing showed that the door protection system was continuously detecting false obstacles even when the entrance area was completely clear.

After inspection, unstable signals from the light curtain receiver caused repeated door reopening behavior.

Replacing the light curtain assembly restored normal operation and eliminated unnecessary door delays.

Why Light Curtain Problems Are Often Misdiagnosed

Many door-related faults appear similar during daily operation.

Passengers may only notice:

• doors reopening unexpectedly
• delayed door closing
• intermittent door operation
• irregular entrance detection

Because these symptoms can also resemble controller faults or door operator issues, technicians often inspect multiple components before identifying the actual source of the problem.

Components Usually Checked Together

When troubleshooting MSG-154P-M7CB and MSG-154RPL-M7C systems, maintenance teams commonly inspect:

• light curtain transmitters
• receiver units
• control boxes
• door controller inputs
• door wiring harnesses
• power supply circuits

In some installations, connector oxidation or signal instability may create symptoms similar to sensor failure even when the light curtain itself remains functional.

A Common Issue Found in High-Traffic Buildings

In shopping centers, hospitals, and office towers, elevator doors operate continuously throughout the day.

Over time, maintenance teams may encounter:

• weakened signal stability
• contamination on optical surfaces
• communication interruptions
• intermittent detection zones
• increased false triggering events

For this reason, light curtain systems are often inspected during preventive maintenance programs rather than only after a complete failure occurs.

Before Replacement

Before replacing the light curtain system:

• verify transmitter and receiver model matching
• confirm ESXC-2000P compatibility
• inspect cable connections
• clean optical surfaces
• test door reopening response after installation

Different Mitsubishi elevator generations may use similar-looking light curtain assemblies with different signal configurations.

Many maintenance teams test the complete door protection circuit after replacement because stable operation depends on both the sensing units and the associated control electronics.
