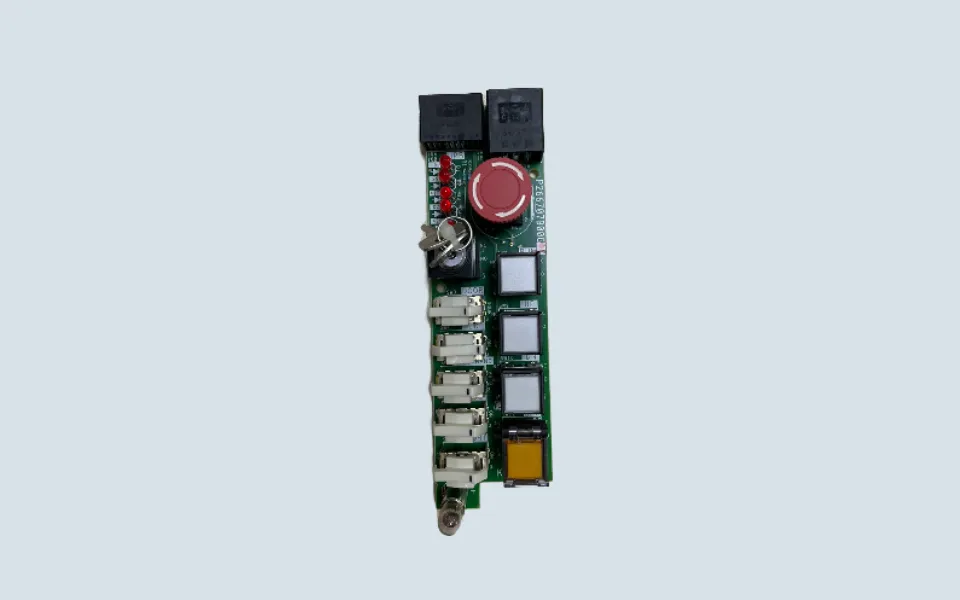

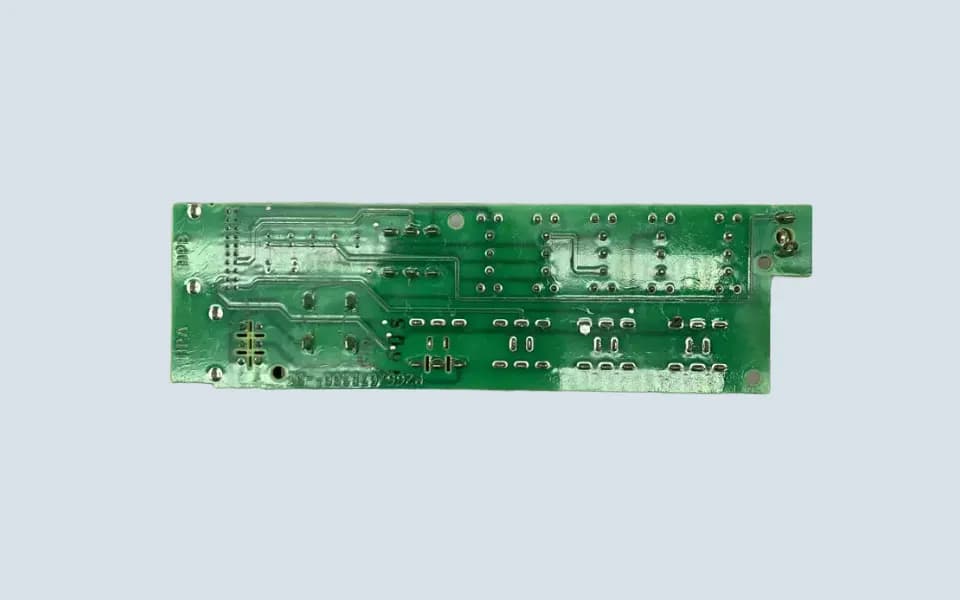

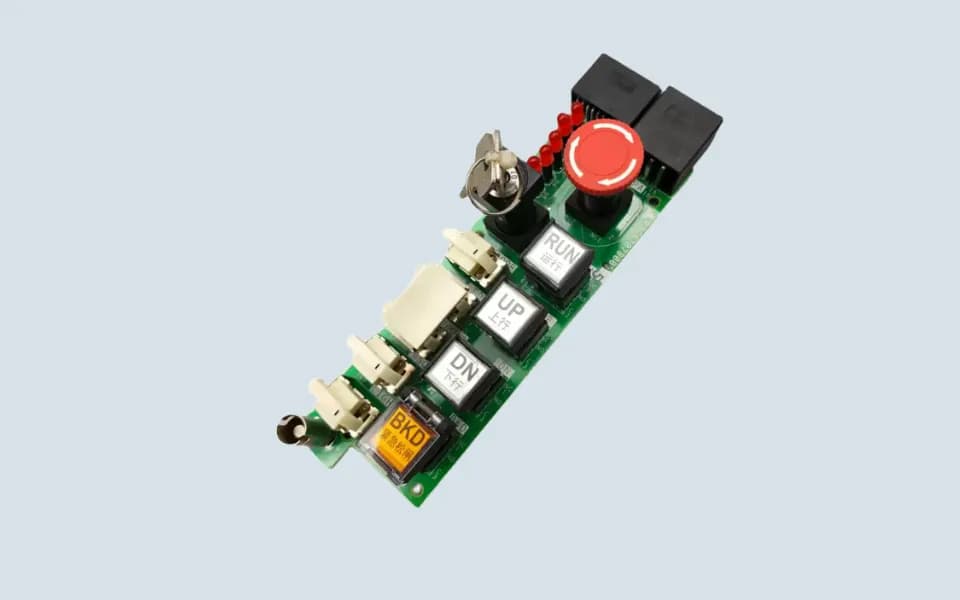

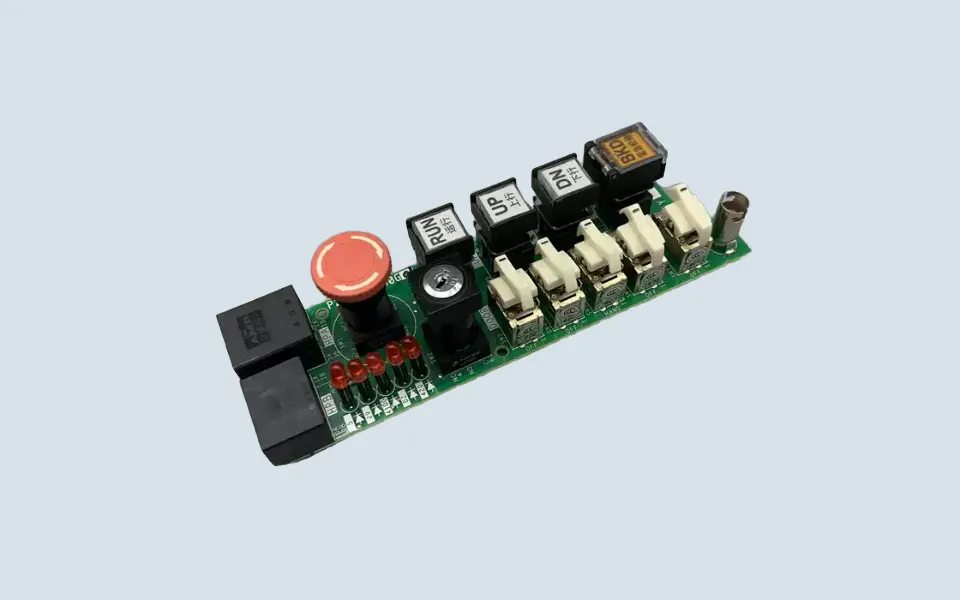

Mitsubishi Elevator Machine-Room-Less Car Top Inspection Box P266707B000G01 / P266708B000G01

P266707B000G01 and P266708B000G01 are car top inspection boxes commonly used in Mitsubishi machine-room-less (MRL) elevator systems.

Installed on top of the elevator car, these inspection boxes allow maintenance personnel to switch between normal operation and inspection mode while performing adjustment, troubleshooting, and maintenance work inside the hoistway.

They are commonly associated with:

• MRL elevator maintenance
• car top inspection operation
• maintenance control circuits
• inspection speed operation
• elevator safety procedures

Machine-room-less elevators rely heavily on car-top maintenance access because major equipment is integrated into the hoistway rather than a traditional machine room.

A Maintenance Visit That Could Not Enter Inspection Mode

During scheduled maintenance of a machine-room-less elevator, technicians attempted to place the elevator into inspection mode before performing guide rail and door system checks.

However, the elevator remained in normal operation mode and refused to respond to inspection controls.

The controller, drive system, and safety circuit were all functioning normally.

After further investigation, the issue was traced to the inspection box mounted on the car top. A damaged selector switch prevented the maintenance circuit from recognizing inspection mode commands.

Once the inspection box was repaired, maintenance personnel were able to safely perform the required servicing work.

Why Inspection Boxes Are Critical During Maintenance

Passengers rarely know this component exists.

However, maintenance personnel use it during:

• preventive maintenance
• safety inspections
• troubleshooting procedures
• modernization projects
• emergency recovery operations

Without a properly functioning inspection box, technicians may be unable to safely control the elevator from the car top during maintenance activities.

Components Usually Checked Together

When servicing P266707B000G01 or P266708B000G01 inspection boxes, technicians commonly inspect:

• inspection switches
• emergency stop buttons
• maintenance wiring harnesses
• safety circuits
• car top junction boxes
• maintenance operation indicators

In some cases, wiring damage or loose terminal connections may produce symptoms similar to inspection box failure.

A Common Issue Found in Older MRL Installations

Machine-room-less elevators often operate for many years in environments exposed to:

• temperature fluctuations
• dust accumulation
• vibration
• humidity

Over time, maintenance personnel may encounter:

• intermittent inspection mode activation
• worn selector switches
• damaged control buttons
• loose terminal connections
• unreliable maintenance commands

These issues typically appear during servicing rather than normal passenger operation.

Before Replacement

Before ordering a replacement inspection box:

• verify the exact Mitsubishi part number
• confirm MRL elevator compatibility
• inspect the inspection switch assembly
• check emergency stop button condition
• verify wiring terminal configuration

Different Mitsubishi MRL generations may use similar inspection box designs while having different internal wiring layouts.

Many maintenance teams test the complete inspection circuit after installation because safe maintenance operation depends on both the inspection box and the associated safety control system.
