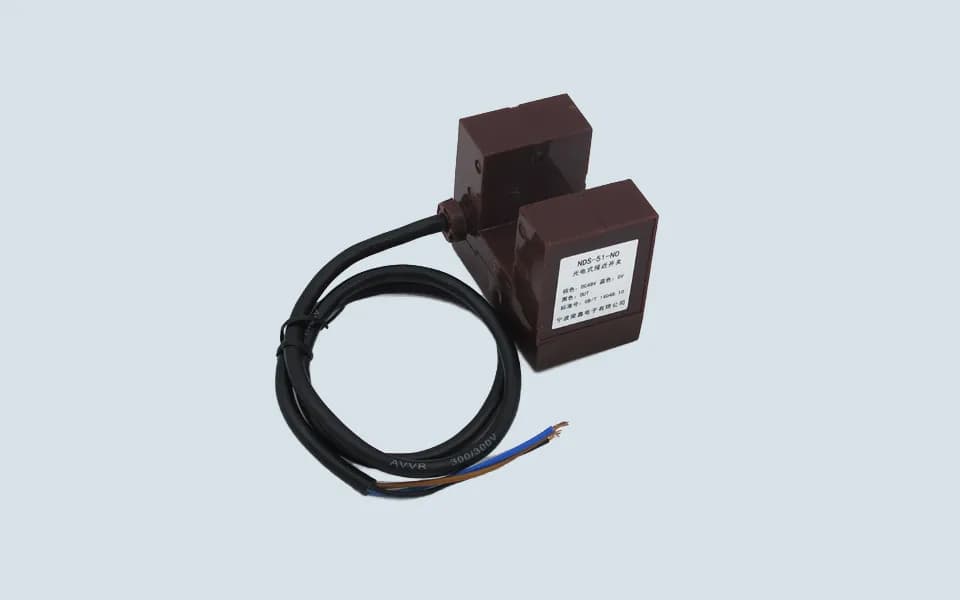

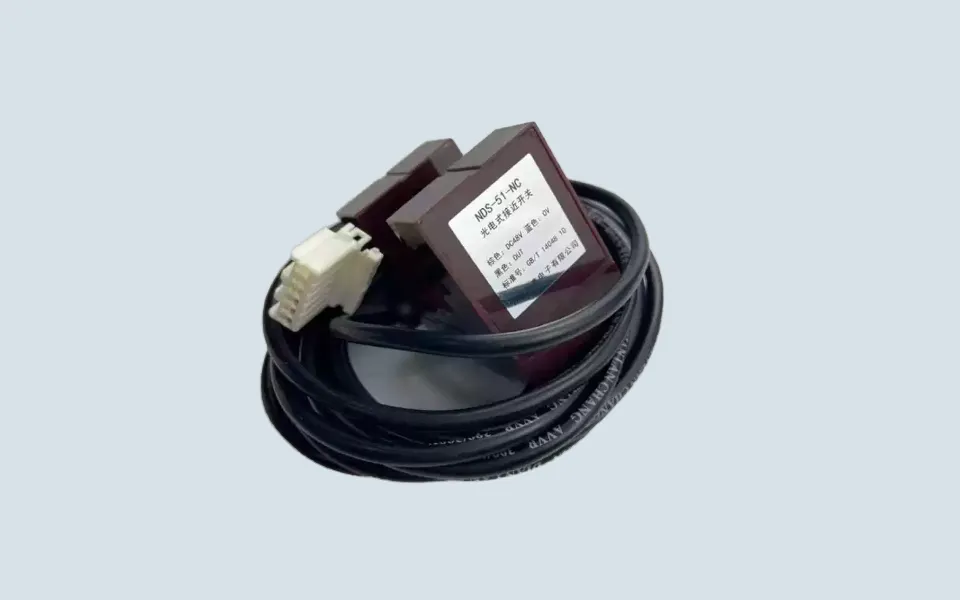

Mitsubishi Elevator Photoelectric Proximity Switch NDS-51-NC

NDS-51-NC is commonly used in Mitsubishi elevator sensing and position detection systems.

This type of photoelectric proximity switch is generally associated with:

• door zone detection
• position monitoring
• signal triggering
• elevator movement sensing
• automatic control response

Usually installed near sensing positions where stable detection signals are required during elevator operation.

Common Field Situation

In some older Mitsubishi elevators in Thailand and Romania, sensing-related problems may gradually appear after long-term operation, especially in dusty environments or shafts with unstable humidity conditions.

Typical situations may include:

• intermittent door zone signals
• delayed detection response
• unstable sensing distance
• random signal interruption
• abnormal leveling trigger behavior

During troubleshooting work, technicians sometimes inspect both the proximity switch and signal wiring together.

Why Detection Stability Matters

The proximity switch directly affects signal coordination between:

• controller systems
• leveling logic
• door zone circuits
• movement detection systems

If the sensing signal becomes unstable, the elevator may show intermittent operational abnormalities during stopping or door opening procedures.

Because of this, stable sensor response is important for long-term operation reliability.

Practical Maintenance Notes

In several modernization projects in Eastern Europe, maintenance companies replace aging photoelectric switches during controller refurbishment because long-term dust accumulation or connector oxidation may affect signal accuracy.

Some technicians also clean the sensing surface during regular maintenance inspection.

FAQ

Can proximity switch problems affect elevator leveling?

Yes. In some Mitsubishi systems, unstable sensing signals may influence leveling or door zone response during stopping operation.

Why does the sensor sometimes detect intermittently?

Dust, humidity, connector aging, or incorrect sensing distance may gradually affect signal stability.

Installation Notes

Before replacement:

• sensing distance should match original configuration
• wiring polarity must be confirmed carefully
• mounting position should remain aligned with the original setup

Some Mitsubishi systems use different sensor structures depending on controller generation and application environment.
