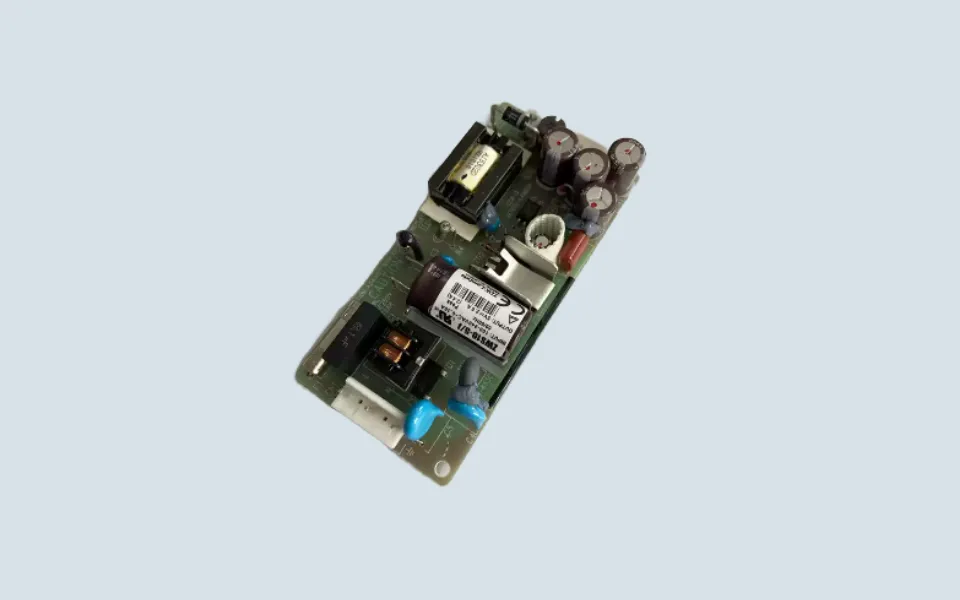

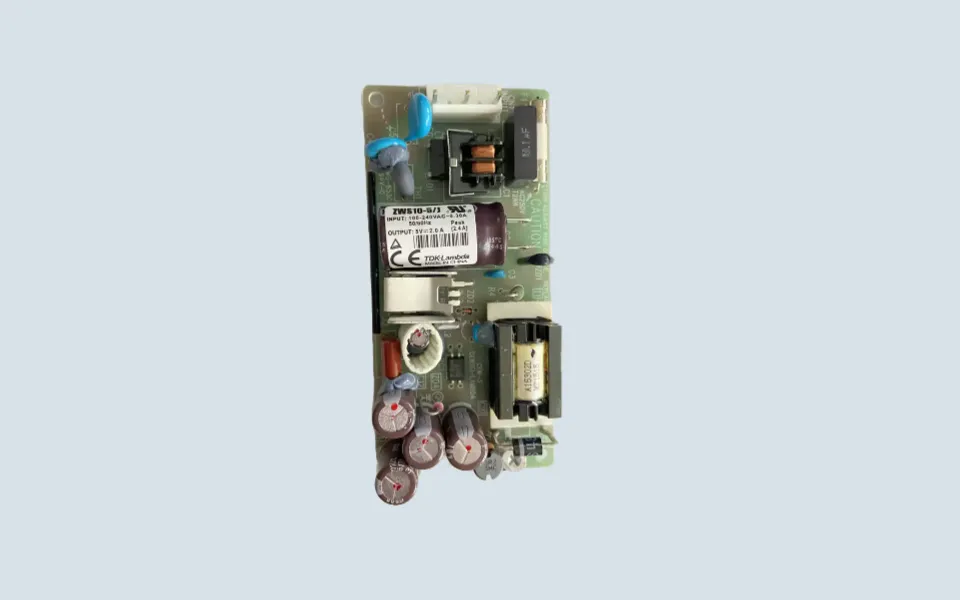

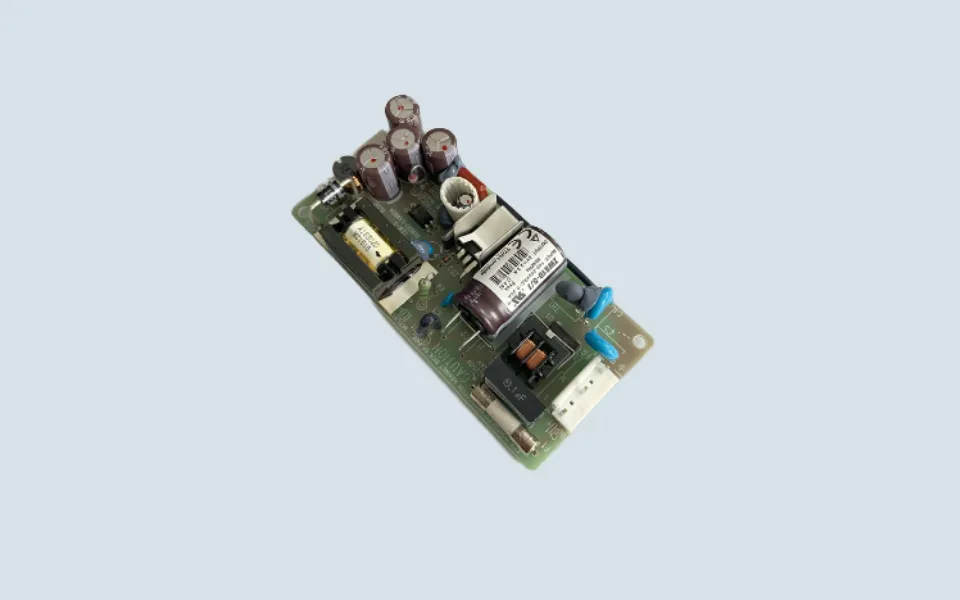

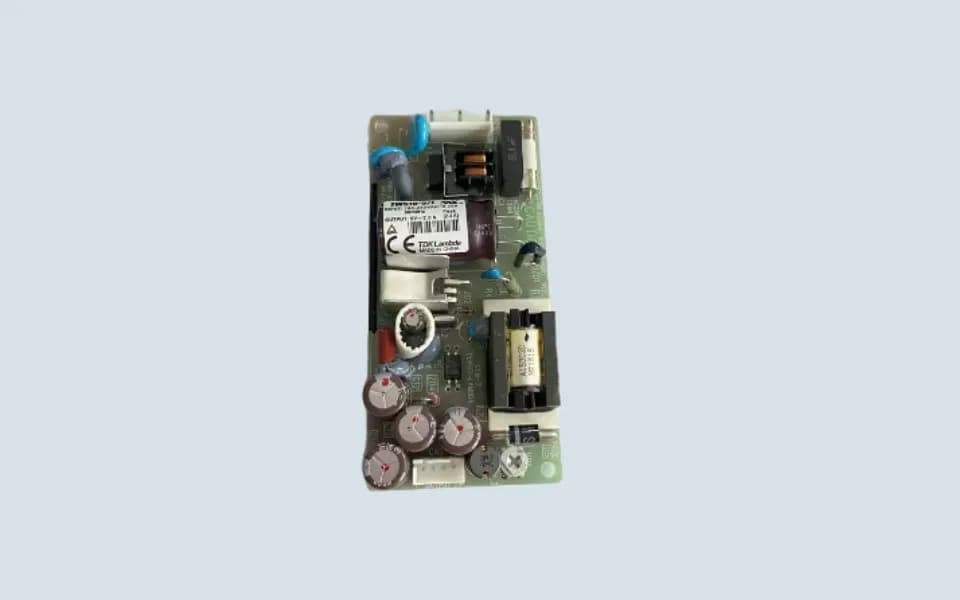

Mitsubishi Elevator Power Supply Board ZWS10-5/J

Mitsubishi Elevator Power Supply Board ZWS10-5/J is commonly used in elevator control and signal power supply applications where stable low-voltage output is required.

This power supply module is usually installed inside the elevator control cabinet or related electronic assembly to provide regulated DC power for controller circuits, display modules, communication boards, or signal control components.

ZWS10-5/J is a TDK-Lambda AC-DC power supply model. Public technical information lists it as a 5V output AC-DC converter, and the model has been marked as obsolete by TDK-Lambda. The recommended alternate part number is ZWS10B-5, but interchangeability should be verified before replacement.

Commonly Requested Models

Customers may search this power supply board under several related model names:

• ZWS10-5/J
• TDK-Lambda ZWS10-5/J
• ZWS10B-5
• Mitsubishi Elevator Power Supply Board ZWS10-5/J

Some elevator maintenance buyers may also compare it with other ZWS series elevator power supply modules such as ZWS30-12/J, but this should only be treated as a related ZWS series power supply model, not a direct replacement. ZWS30-12/J is also sold in the elevator spare parts market as a Mitsubishi elevator power supply board model.

A Power Supply Problem Found During Maintenance

In one elevator maintenance case, the elevator could still run, but several low-voltage electronic functions became unstable.

Technicians noticed intermittent display response and occasional communication reset behavior inside the control cabinet.

The main controller was inspected first, but no obvious board damage was found. After checking the low-voltage power circuit, the problem was traced to unstable output from the power supply module.

After replacing the ZWS10-5/J power supply board and checking the wiring terminals, the signal circuit returned to stable operation.

Why Power Supply Faults Are Often Misdiagnosed

Aging power supply modules do not always fail completely.

In many elevator control systems, unstable power output may cause symptoms such as:

• intermittent display reset
• unstable communication signals
• controller input errors
• random signal interruption
• abnormal low-voltage circuit behavior
• repeated board restart symptoms

These problems may look like communication board, display board, or controller faults. Because of this, experienced technicians usually check the power supply output before replacing expensive PCB boards.

Parts Often Checked Together

When servicing ZWS10-5/J power supply board, maintenance teams usually check:

• controller input voltage
• low-voltage DC output
• wiring terminals
• fuse condition
• communication boards
• display boards
• cabinet grounding condition

In older elevator cabinets, terminal oxidation or unstable input voltage may also affect power supply performance.

Before Ordering

Please confirm the following before purchase:

• original model number: ZWS10-5/J
• output voltage requirement
• input voltage range
• connector or terminal type
• mounting space
• original power supply label photo
• whether ZWS10B-5 is suitable for your system

Because ZWS10-5/J has been discontinued, replacement should be confirmed carefully. Even if ZWS10B-5 is listed as a recommended alternate, the electrical and installation compatibility should be checked before use.
