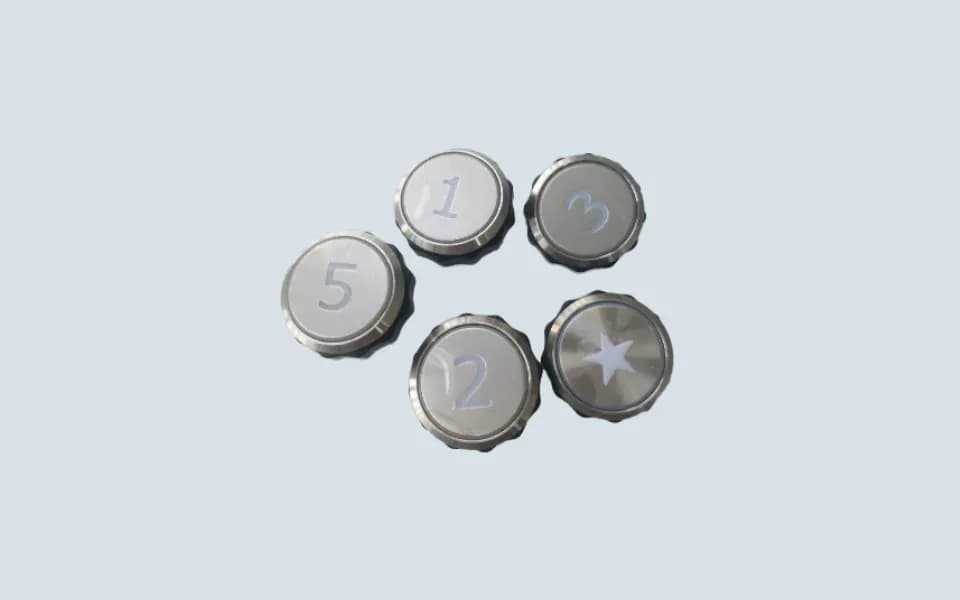

Mitsubishi Push-button KAN-JB0909G01ST G06RTW B/O KAN-J1602

Mitsubishi Push-button KAN-JB0909G01ST / KAN-JB0909G06RTW / B/O / KAN-J1602 is used in Mitsubishi elevator push button and operating panel applications.

This button is usually requested by the model code printed on the old button or by the visible marking on the rear side of the button module. In the elevator spare parts market, it may also be searched as:

• Mitsubishi Elevator Push-button
• Mitsubishi Elevator Push Button
• Mitsubishi KAN-JB0909 Button
• Mitsubishi KAN-J1602 Button
• Mitsubishi Five Pin Button
• Mitsubishi COP Button
• Mitsubishi LOP Button
• Mitsubishi Elevator Operating Panel Button

The main model references for this page are:

• KAN-JB0909G01ST
• KAN-JB0909G06RTW
• KAN-JB0909
• KAN-J1602
• J1602
• B/O version

These model references are useful for search coverage and quotation confirmation. However, the final replacement should still be checked by the old button label, pin structure, illumination style, button size, and panel installation position.

Button Application

This push-button may be used in elevator operating panel applications, depending on the original elevator configuration.

It may be installed in:

• car operating panel
• landing operating panel
• hall call panel
• outbound call panel
• elevator button panel
• maintenance replacement button assembly

A button used inside the elevator car and a button used on the landing side may look similar from the front, but the rear connector, mounting structure, pin definition, lighting method, and panel opening size may be different.

For this reason, KAN-JB0909 / KAN-J1602 should not be selected only by appearance.

What Buyers Should Confirm

Before ordering Mitsubishi Push-button KAN-JB0909G01ST / G06RTW / KAN-J1602, please check:

• complete model number on the old button
• whether the old unit shows KAN-JB0909 or KAN-J1602
• whether the version is G01ST, G06RTW, B, or O
• front photo of the button

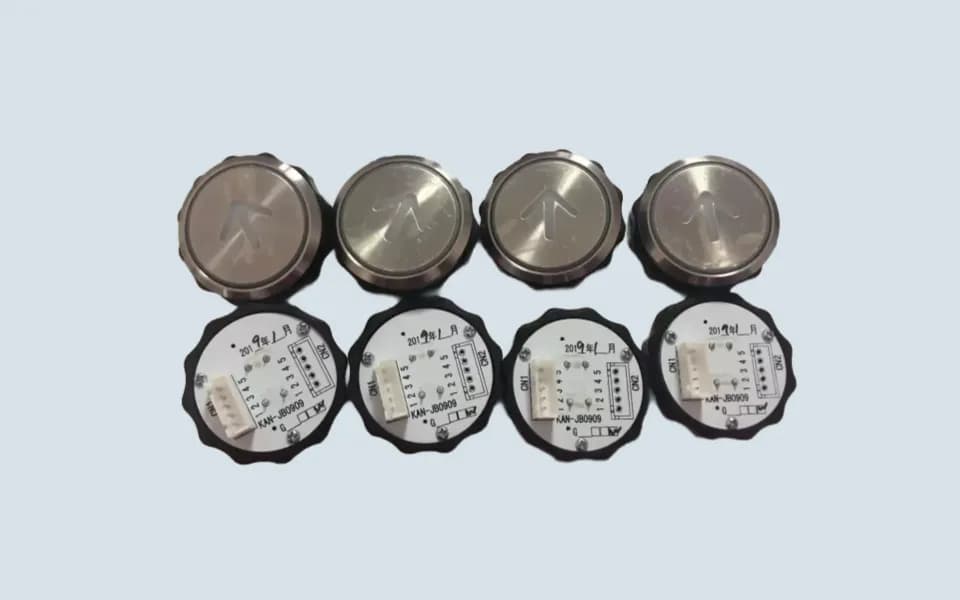

• back photo of the button module
• connector or pin structure
• button size and mounting style
• illumination color if available
• whether it is used in COP, LOP, or hall call panel
• full panel photo showing the installation position

This information helps confirm whether the required part is a car button, landing call button, hall call button, or another Mitsubishi elevator push-button version.

Practical Replacement Notes

Do not replace this button only by front appearance.

Mitsubishi elevator buttons may have similar front design, but the rear structure can be different. For example, a similar-looking button may use a different pin layout, different lamp structure, or different mounting clip.

If the button does not respond, technicians usually check the button contact, wiring harness, connector terminals, button board, and related signal circuit before confirming the button fault.

If the button light does not work, the cause may be the lamp or LED circuit, the button module itself, the COP / LOP board, or the panel wiring.

For overseas buyers, sending clear photos of the old KAN-JB0909 / KAN-J1602 button from both front and back sides is the safest way to confirm the correct replacement before shipment.
