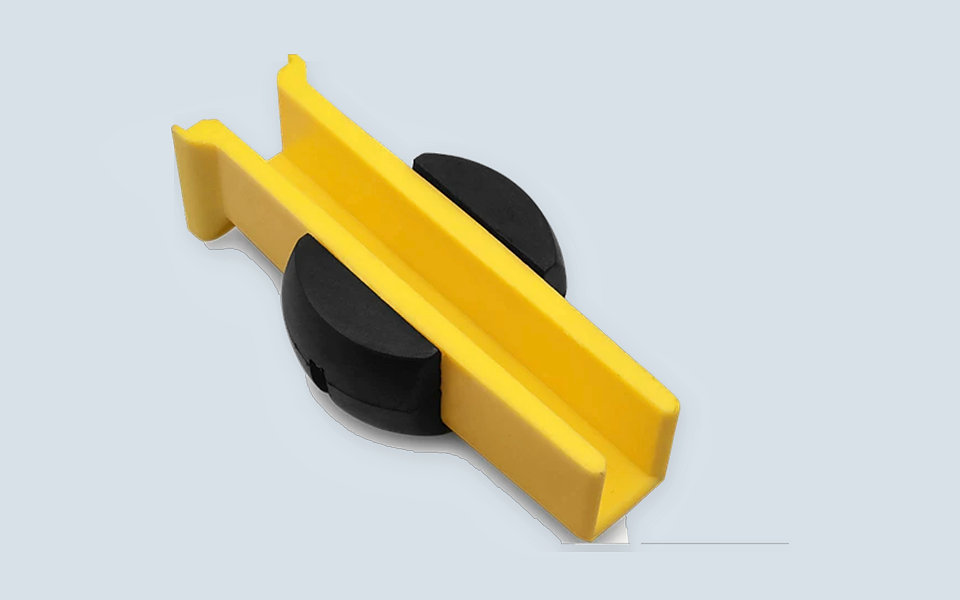

ThyssenKrupp Elevator Guide Shoe

ThyssenKrupp Elevator Guide Shoe is a mechanical guiding component installed on elevator cars and counterweights to maintain stable movement along the guide rails.

The guide shoe keeps the elevator car aligned during travel by controlling the clearance between the shoe and the rail surface. It reduces lateral movement, helps improve ride comfort, and supports smooth operation throughout acceleration, running, and stopping.

ThyssenKrupp guide shoes are available in different structures, including sliding guide shoe assemblies, guide shoe inserts, and different guide types depending on elevator model, load capacity, and guide rail specification.

This product may also be searched as:

• ThyssenKrupp Guide Shoe
• Thyssen Elevator Guide Shoe
• ThyssenKrupp Car Guide Shoe
• ThyssenKrupp Counterweight Guide Shoe
• Elevator Sliding Guide Shoe

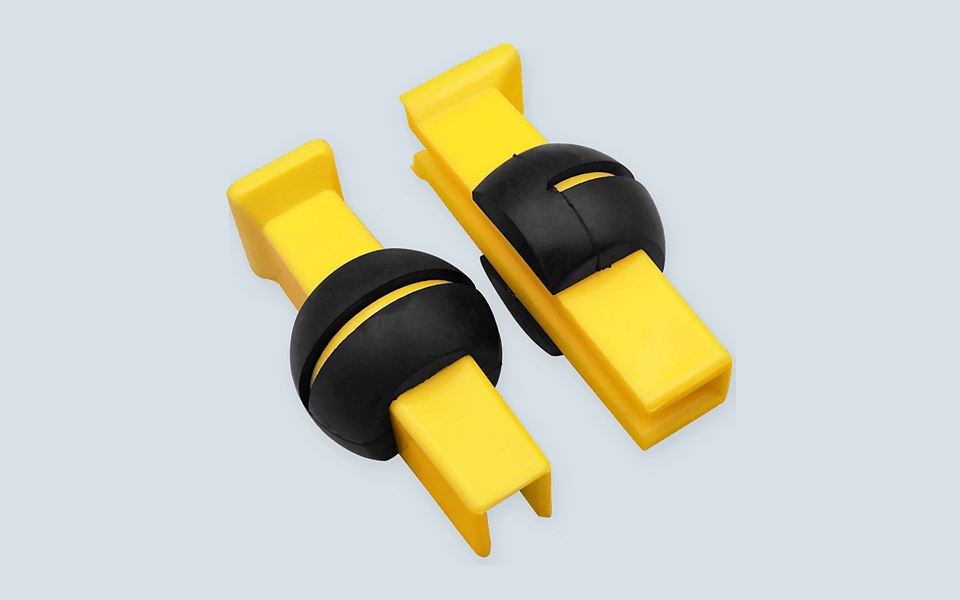

• Elevator Guide Shoe Assembly
• Elevator Rail Guide Shoe
• ThyssenKrupp Guide Shoe Insert

The Part That Keeps the Car Running Smoothly

The guide shoe is not a high-speed rotating component, but it continuously works during every elevator movement.

When the guide shoe becomes worn or incorrectly adjusted, technicians may notice:

• increased vibration inside the car
• running noise near the guide rails
• uneven travel feeling
• excessive guide clearance
• abnormal wear on the rail surface
• unstable stopping performance

In many maintenance cases, the problem is not caused by the complete guide shoe itself. The liner condition, guide rail surface, lubrication, mounting bracket, and alignment should all be checked together.

A worn liner installed inside a damaged guide shoe body may not restore normal running quality.

Select the Correct Guide Shoe Version

ThyssenKrupp elevators use different guide shoe designs depending on the elevator model and guide rail specification.

Some versions are supplied as complete assemblies, while others are supplied as replaceable inserts or sliding elements. ThyssenKrupp parts references include different guide shoe types, such as upper car guide shoes, guide inserts, and specific guide types matched with different rail dimensions.

Before quotation, please provide:

• complete guide shoe photo
• car side or counterweight side
• upper or lower installation position

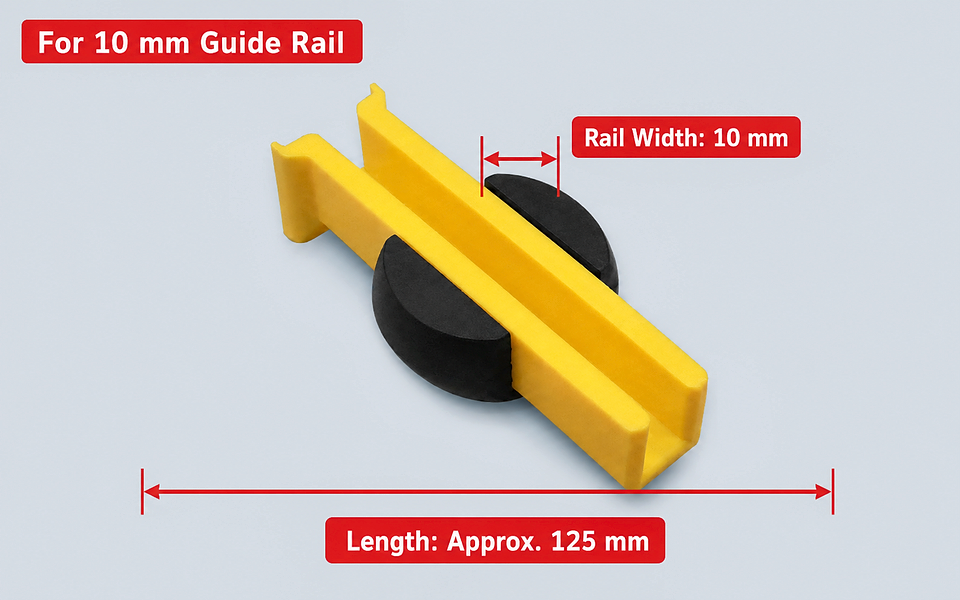

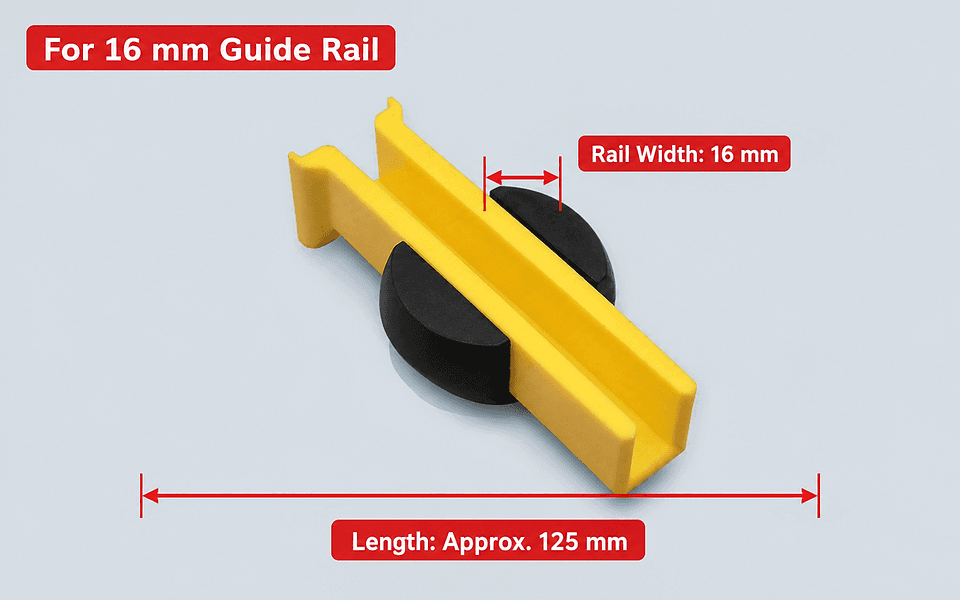

• guide rail size
• liner length and thickness
• mounting dimensions
• guide shoe label or marking
• elevator model if available
• complete installation photo

Important matching points include:

• guide rail width
• shoe opening size
• liner thickness
• fixing method
• spring or adjustment structure
• mounting direction

A guide shoe with the wrong clearance may create additional friction or excessive movement after installation.

Common Replacement Situations

A ThyssenKrupp guide shoe may require replacement when:

• the liner is heavily worn
• the shoe body is damaged
• spring pressure becomes weak
• abnormal clearance appears
• the guide shoe produces impact noise
• the elevator ride becomes unstable

During replacement, technicians should also inspect:

• guide rail surface condition
• rail alignment
• lubrication condition
• car frame mounting
• counterweight frame condition
• guide shoe adjustment

Replacing only the guide shoe without correcting rail or alignment problems may shorten the service life of the new component.

Application in Repair and Modernization Projects

ThyssenKrupp guide shoes are commonly supplied for elevator maintenance, refurbishment, and modernization projects where original guiding components require replacement.

For maintenance companies in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, providing the old guide shoe photo together with the guide rail information can help confirm the correct replacement faster.

FAQ

What is the function of a ThyssenKrupp Guide Shoe?

The guide shoe keeps the elevator car or counterweight aligned with the guide rails and reduces lateral movement during operation.

Is a guide shoe the same as a boot liner?

No. The boot liner is the replaceable sliding insert inside the guide shoe. The guide shoe usually refers to the complete assembly.

Are car guide shoes and counterweight guide shoes the same?

Not always. Their structure, size, loading condition, and mounting position may be different.

Can I replace only the liner instead of the complete guide shoe?

Yes, if the guide shoe body is still in good condition and only the sliding insert is worn.

What information should I send before quotation?

Please provide guide shoe photos, installation position, guide rail size, dimensions, and any visible model markings.
