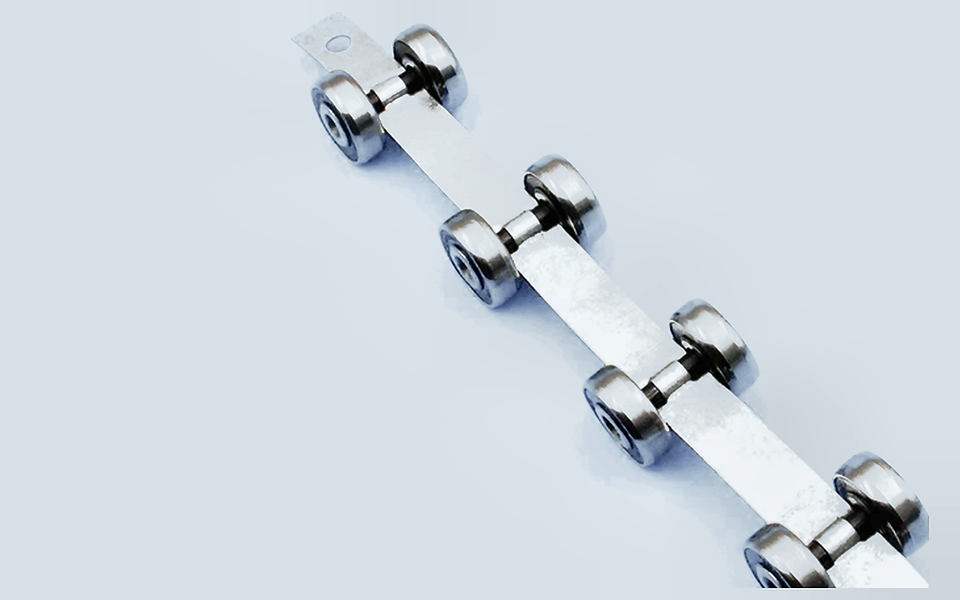

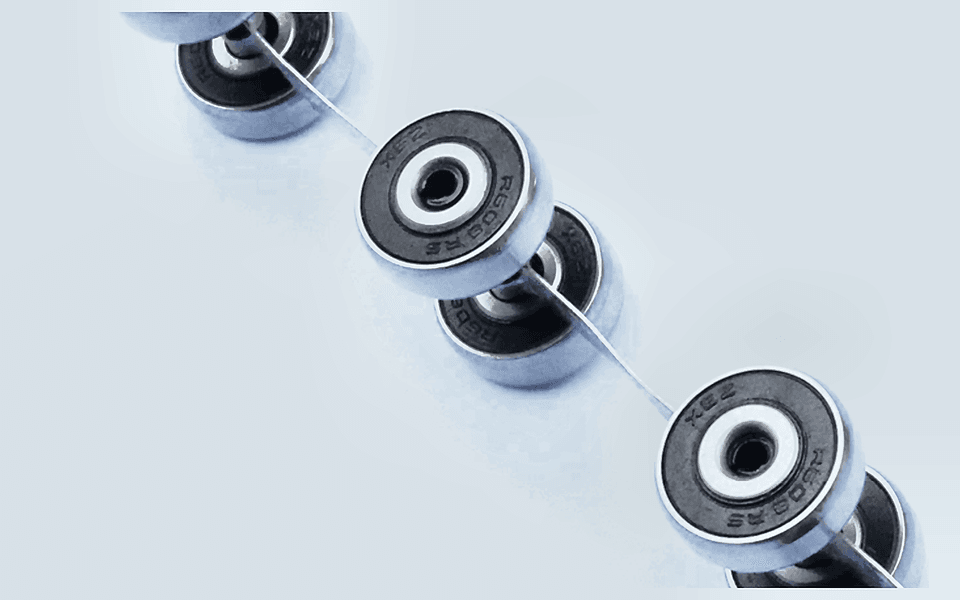

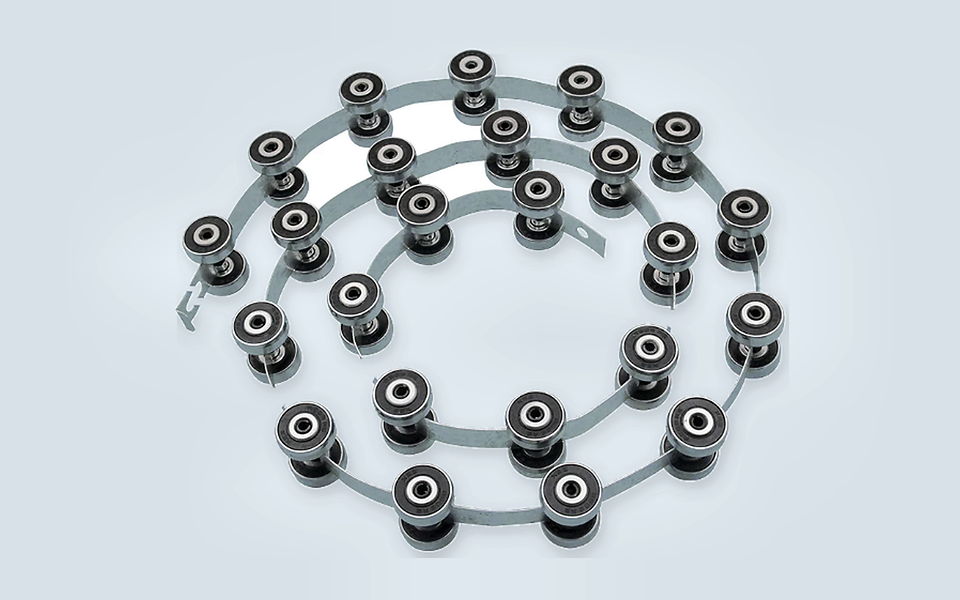

ThyssenKrupp Elevator Rotary Chain

ThyssenKrupp Rotary Chain is a mechanical transmission component used in compatible ThyssenKrupp elevator door operator systems.

The chain transfers rotational movement between mechanical components inside the door operator, helping maintain synchronized operation of the door mechanism during opening and closing cycles.

Unlike standard industrial chains, elevator door chains are designed for compact installation spaces and repeated low-speed operation. Their condition directly affects door movement stability and adjustment accuracy.

This product may also be searched as:

• ThyssenKrupp Rotary Chain
• ThyssenKrupp Door Rotary Chain
• Elevator Door Chain
• Door Operator Chain
• Elevator Transmission Chain
• Door Machine Chain Assembly
• ThyssenKrupp Door Spare Parts

A Small Transmission Part Inside the Door System

The rotary chain usually operates together with sprockets, shafts, tensioning parts, and other door mechanism components.

Although the chain itself is a simple mechanical part, wear can gradually affect the complete door operation.

Typical signs of chain problems include:

• abnormal clicking noise
• loose chain movement
• unstable door speed
• increased mechanical vibration
• irregular door opening and closing
• excessive chain slack

In many maintenance cases, the chain is not the only part that requires inspection. Worn sprockets, incorrect tension adjustment, or misalignment can also accelerate chain wear.

Match the Chain With the Original Door Operator

ThyssenKrupp door systems have used different generations of mechanical transmission designs. Similar-looking chains may differ in:

• chain length
• number of links
• pitch size
• roller diameter
• connecting link type
• mounting arrangement

Before quotation, please provide:

• complete old chain photo
• number of chain links
• chain length
• pitch measurement
• roller or link dimensions
• connecting joint type
• sprocket photo
• door operator model
• complete door mechanism photo
• quantity required

Counting the original links is often one of the fastest ways to identify the correct replacement.

Replacement and Maintenance Considerations

A rotary chain may need replacement when:

• chain links become stretched
• rollers are worn
• connecting parts are damaged
• corrosion appears
• abnormal clearance develops
• chain movement becomes uneven

During replacement, technicians should inspect:

• sprocket tooth condition
• chain tension
• lubrication condition
• mounting brackets
• related transmission components

Installing a new chain on worn sprockets may create premature wear and reduce service life.

After replacement, the door operator should be adjusted and tested through several complete opening and closing cycles to ensure smooth movement.

Application in Elevator Repair Projects

ThyssenKrupp rotary chains are commonly supplied for elevator door maintenance, repair, and modernization projects where original mechanical transmission components require replacement.

For maintenance companies in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, providing the old chain photo together with the door operator image is recommended before shipment.

FAQ

What is the function of a ThyssenKrupp Rotary Chain?

It transfers mechanical rotation inside the elevator door operator system and helps synchronize door movement.

Is a rotary chain the same as a door belt?

No. A rotary chain is a mechanical chain transmission component, while a door belt is a flexible belt-drive component used in different door mechanisms.

Are all ThyssenKrupp rotary chains interchangeable?

No. Chain length, pitch, link number, roller size, and door operator design must match the original component.

How can I identify the correct rotary chain?

Please compare the chain length, number of links, pitch, connecting link, sprocket structure, and original door operator model.

What information should I send before quotation?

Please provide chain photos, link count, dimensions, sprocket photos, door operator model, and installation position.
