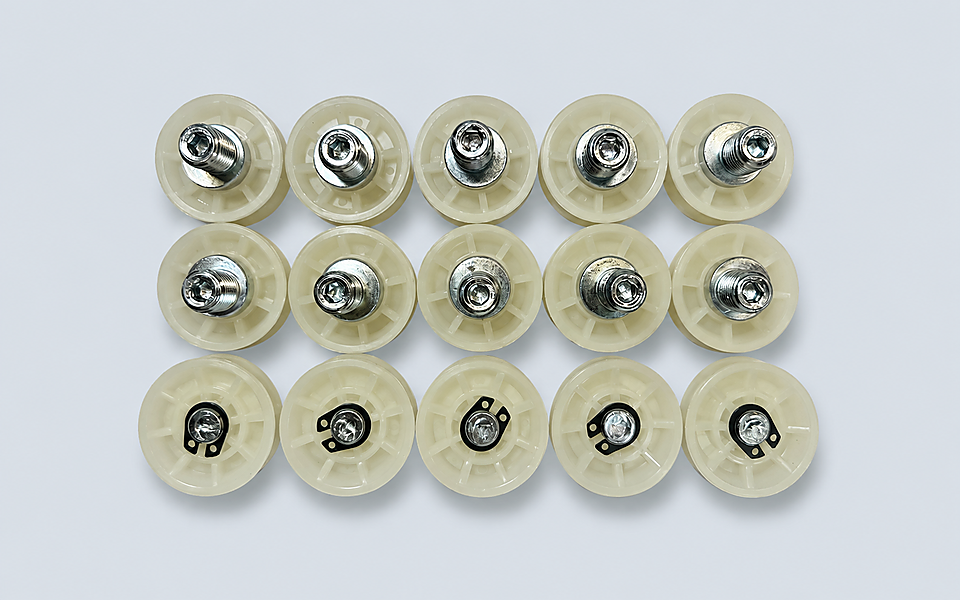

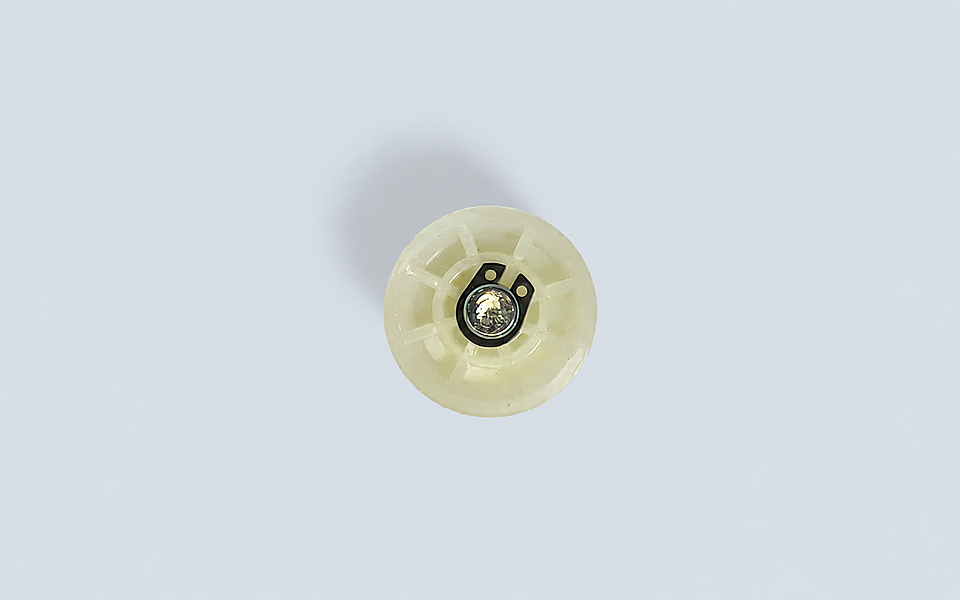

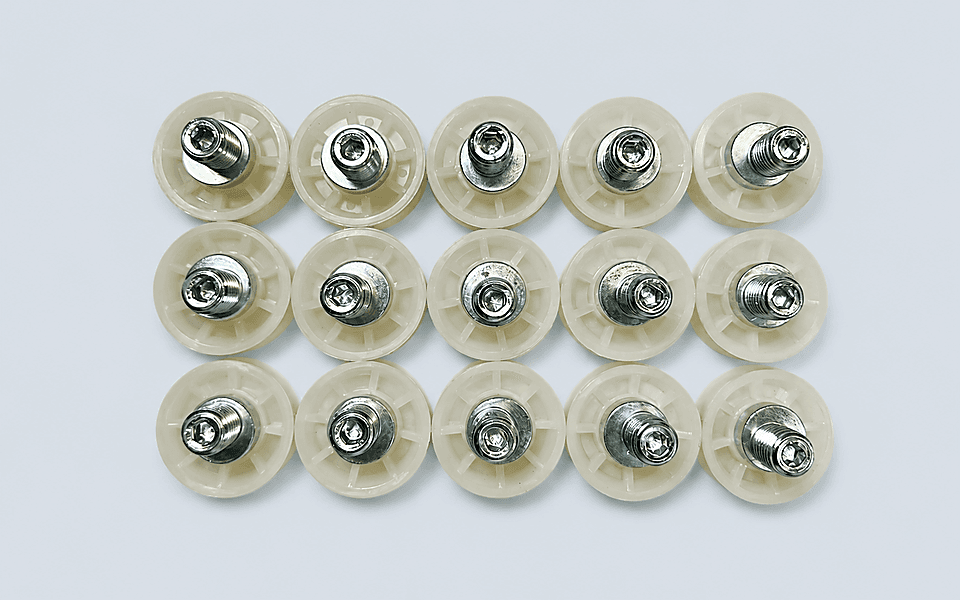

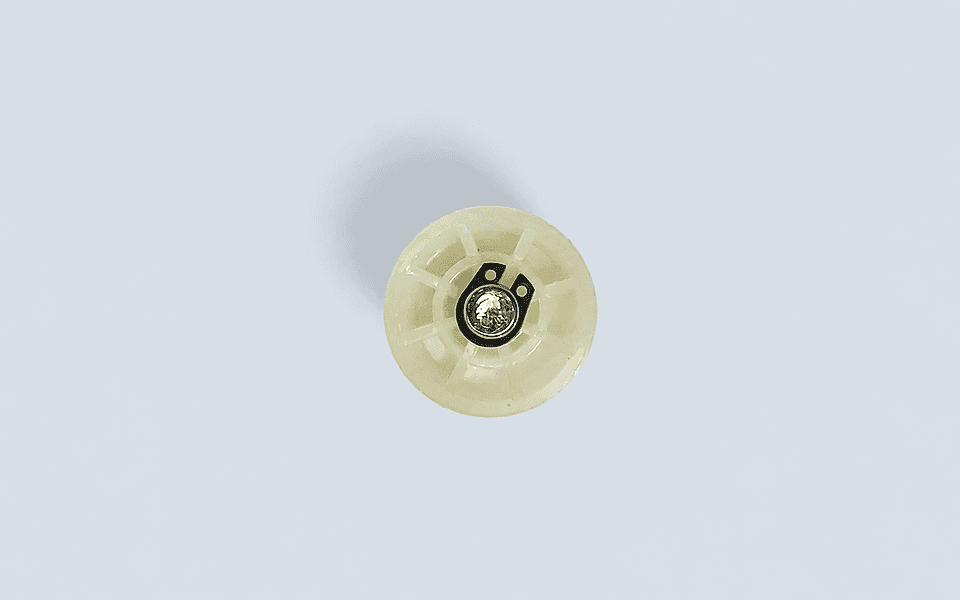

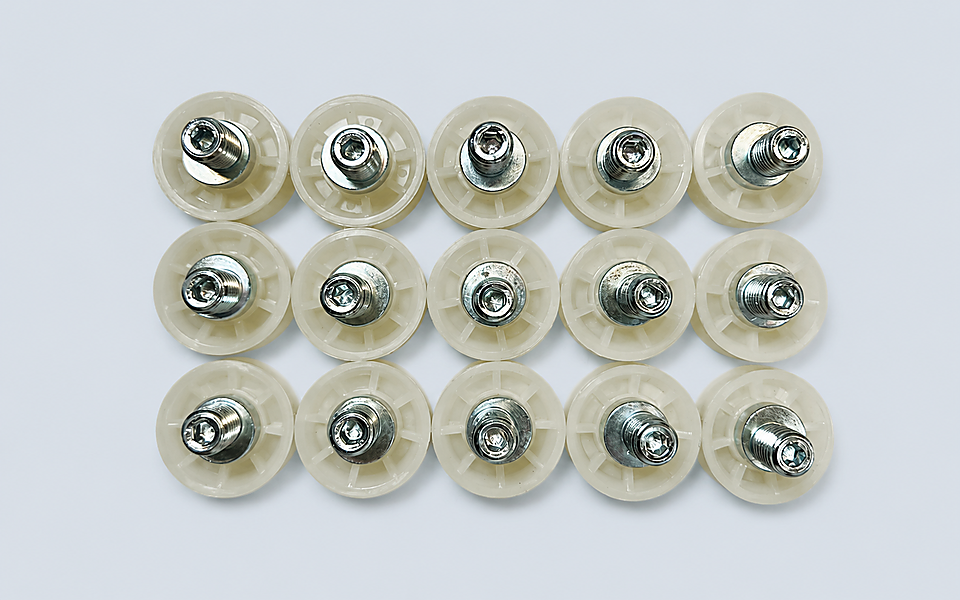

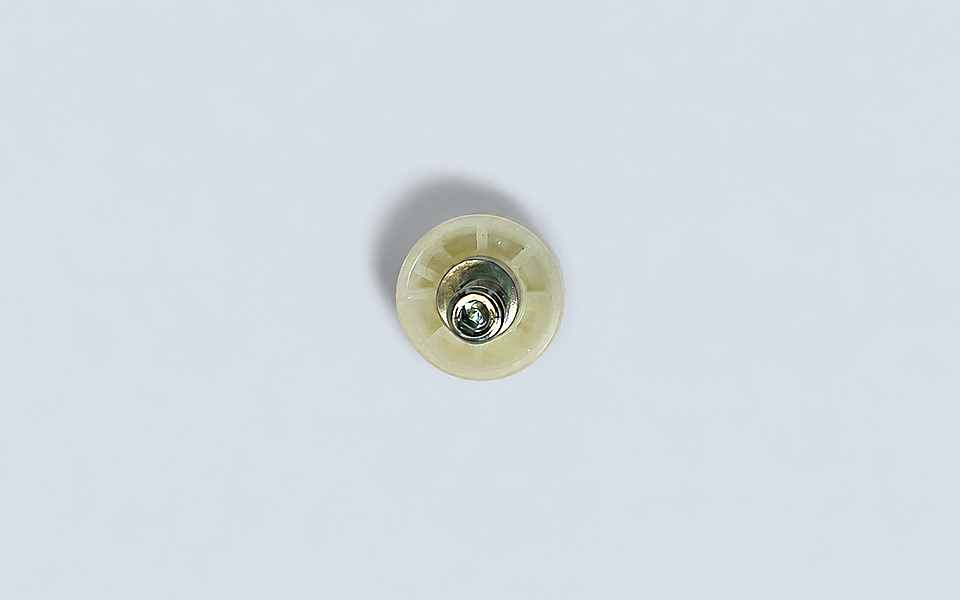

ThyssenKrupp Eccentric Guide Roller 30×14 M10

The ThyssenKrupp Eccentric Guide Roller 30×14×M10 is a mechanical guide roller used in compatible elevator landing door systems. It is commonly associated with Thyssen S200 / S300 door mechanisms and features an eccentric mounting stud for position adjustment.

Built for Adjustment, Not Just Rolling

Unlike a standard fixed door roller, this guide roller uses an eccentric M10 mounting stud. Rotating the eccentric position allows technicians to adjust the roller contact and clearance during door installation or maintenance.

Common specifications include:

• Roller diameter: 30 mm

• Roller width: 14 mm

• Mounting thread: M10

• Mounting type: Eccentric

• Roller material: Nylon

• Running surface: Grooved

• Application: Landing door guide mechanism

Check the Size Before Replacement

Thyssen door systems use several similar eccentric rollers, including 26 mm, 28 mm and different 30 mm versions.

For this product, the 30 × 14 × M10 dimensions are important identification points.

Before ordering, please confirm:

• Outer diameter

• Roller width

• M10 thread

• Eccentric shaft design

• Groove profile

• Original roller photos

• Door system model

• Required quantity

FAQ

What is the 30×14×M10 eccentric roller used for?

It is used as an adjustable guide roller in compatible ThyssenKrupp elevator landing door mechanisms.

Is it used with S200 and S300 doors?

Yes. The 30×14×M10 version is documented for Thyssen S200 / S300 landing door applications.

Is it the same as the 30×9×M10 roller?

No. They have different widths and bearing/roller configurations, so the original dimensions should be checked before replacement.

For ThyssenKrupp Eccentric Guide Roller 30×14×M10 requirements, send us the original roller photos and dimensions for replacement checking before quotation.
