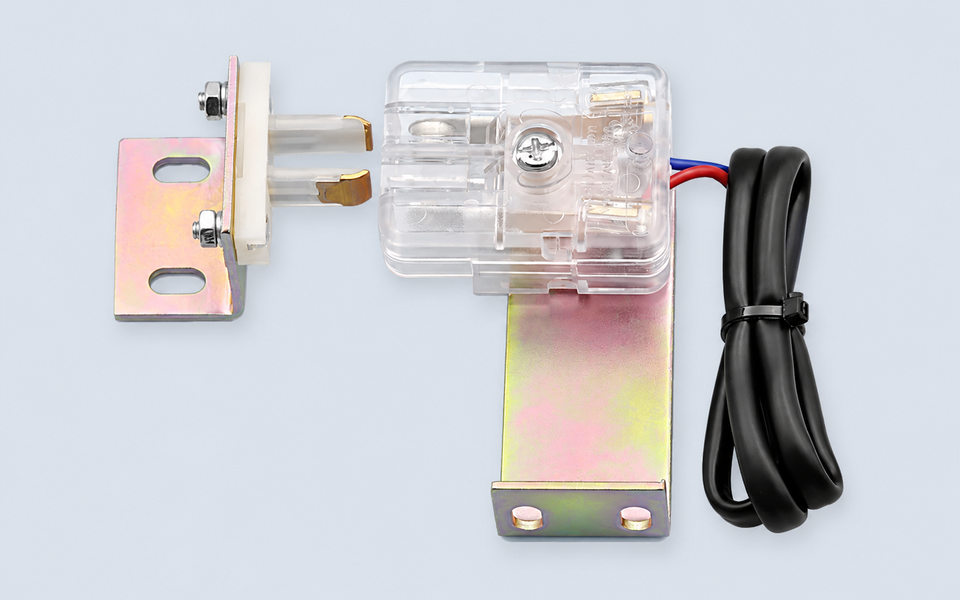

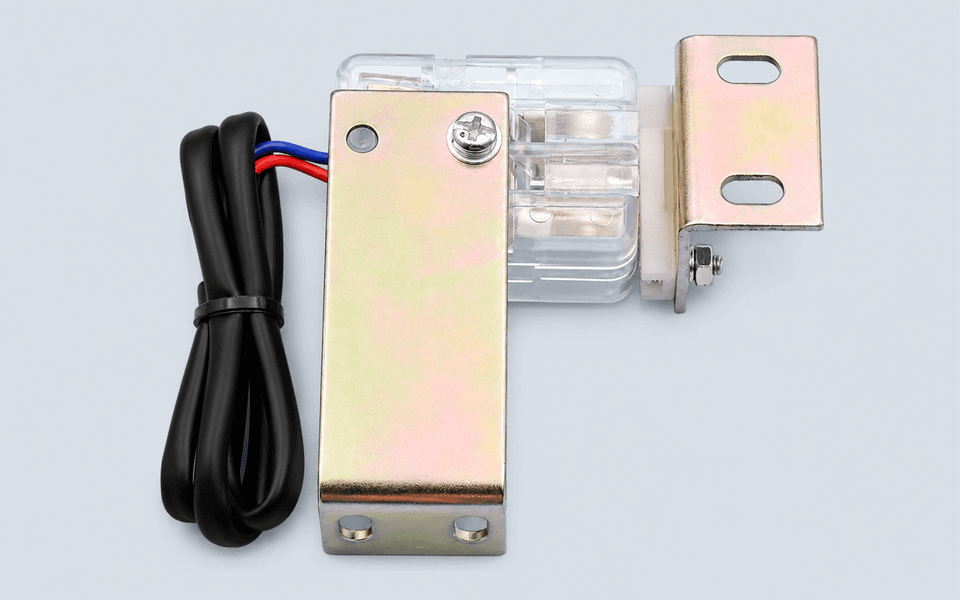

ThyssenKrupp S8 Landing Door Lock

ThyssenKrupp S8 Door Lock is a mechanical safety lock assembly used in compatible ThyssenKrupp elevator landing door systems.

The lock is installed on the landing door and works together with the door interlock mechanism to confirm that the landing door is securely locked before elevator movement is permitted.

Unlike simple door closing components, the landing door lock is part of the elevator safety chain. Its mechanical position and electrical feedback directly affect whether the elevator controller recognizes the door as safely closed.

This product may also be searched as:

• ThyssenKrupp S8 Door Lock
• ThyssenKrupp S8 Landing Door Lock
• ThyssenKrupp Door Interlock
• S8 Landing Door Safety Lock
• Elevator Landing Door Lock Device
• Elevator Door Mechanical Lock
• ThyssenKrupp S8 Door Safety Device

A Mechanical Safety Component, Not Just a Door Part

The door lock operates in a combination of mechanical movement and electrical monitoring.

During normal operation:

1. The landing door closes completely.
2. The locking mechanism engages.
3. The safety contact confirms the locked position.
4. The controller allows elevator movement.

When the lock mechanism becomes worn or misaligned, the elevator may show symptoms such as:

• door lock fault
• elevator unable to start
• intermittent safety circuit interruption
• repeated door reopening
• inspection operation failure
• random shutdown during service

However, these problems are not always caused by the lock itself. Door adjustment, roller wear, lock hook position, wiring condition, and safety-circuit connections should also be checked.

Identify the Correct S8 Version

ThyssenKrupp S8 door systems may use different left/right versions and mechanical configurations. The official S8 parts family includes different landing door lock versions, such as left and right door locks, which should be matched according to the original installation.

Before quotation, please provide:

• complete S8 door lock photo
• left-hand or right-hand installation
• label or marking on the lock
• hook and locking mechanism photo
• electrical contact arrangement
• mounting-hole position
• connector or wiring photo
• landing door system photo
• elevator model if available

Important matching points include:

• locking hook direction
• mounting position
• contact block type
• mechanical dimensions
• door-panel configuration

A visually similar lock may not work correctly if the locking direction or contact arrangement is different.

Common Replacement Reasons

An S8 door lock may require replacement when:

• mechanical parts become worn
• locking hook movement becomes unstable
• contacts become unreliable
• housing is damaged
• spring force becomes weak
• corrosion affects operation
• safety circuit cannot remain closed

Before installing a replacement lock, technicians should inspect:

• landing door alignment
• door hanger rollers
• lock hook engagement
• door gap adjustment
• electrical contacts
• safety-circuit wiring

A new lock installed on a misaligned door system may still create repeated faults.

Application in Elevator Maintenance

ThyssenKrupp S8 door locks are commonly supplied for elevator repair and modernization projects involving S8 landing door systems.

For maintenance companies in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, providing the old lock photo together with the complete landing door assembly photo is recommended before shipment.

FAQ

What is the function of a ThyssenKrupp S8 Door Lock?

The S8 door lock secures the landing door mechanically and provides a safety-related signal confirming the locked condition.

Is S8 Door Lock the same as a door contact?

No. The door lock is a mechanical locking device with safety monitoring contacts, while a door contact usually only detects electrical connection or position.

Are all S8 door locks interchangeable?

No. Different versions may have different locking directions, mounting structures, and contact configurations.

How can I identify the correct S8 lock?

Please compare the complete old lock, installation direction, hook position, electrical contacts, and mounting dimensions.

What information should I send before quotation?

Please send the lock photos, marking label, left/right installation direction, wiring details, and complete landing door photo.
