ThyssenKrupp Elevator Boot Liner

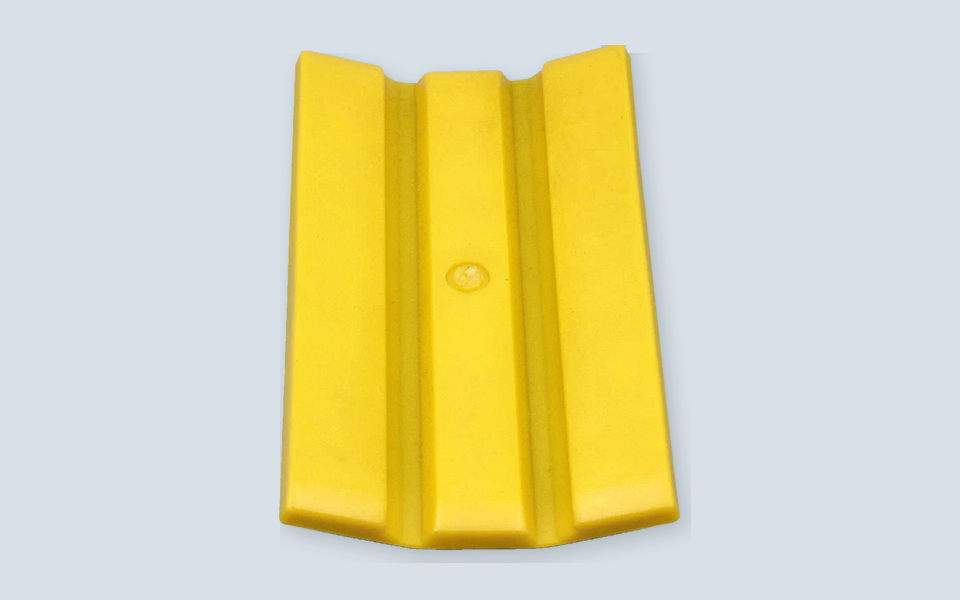

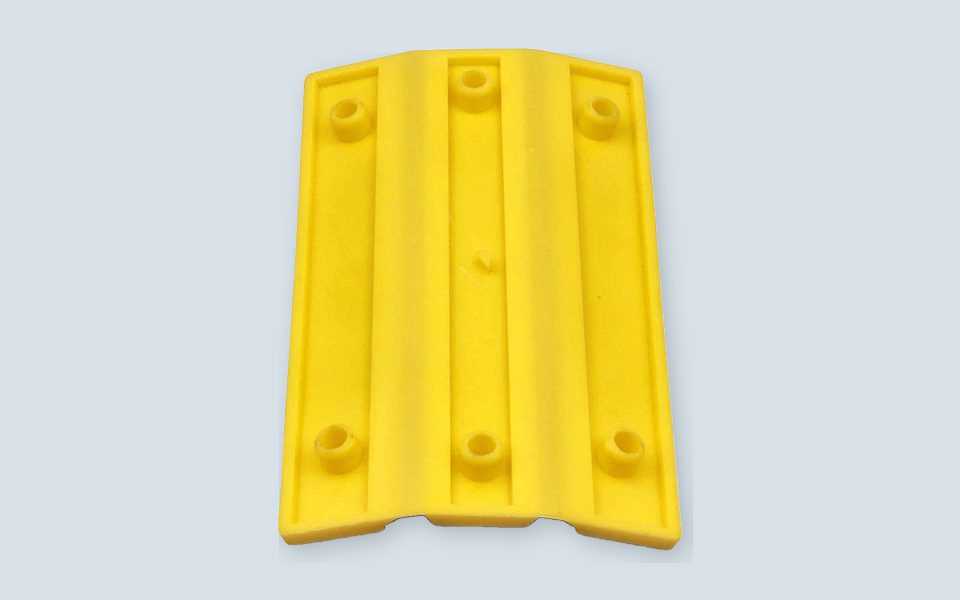

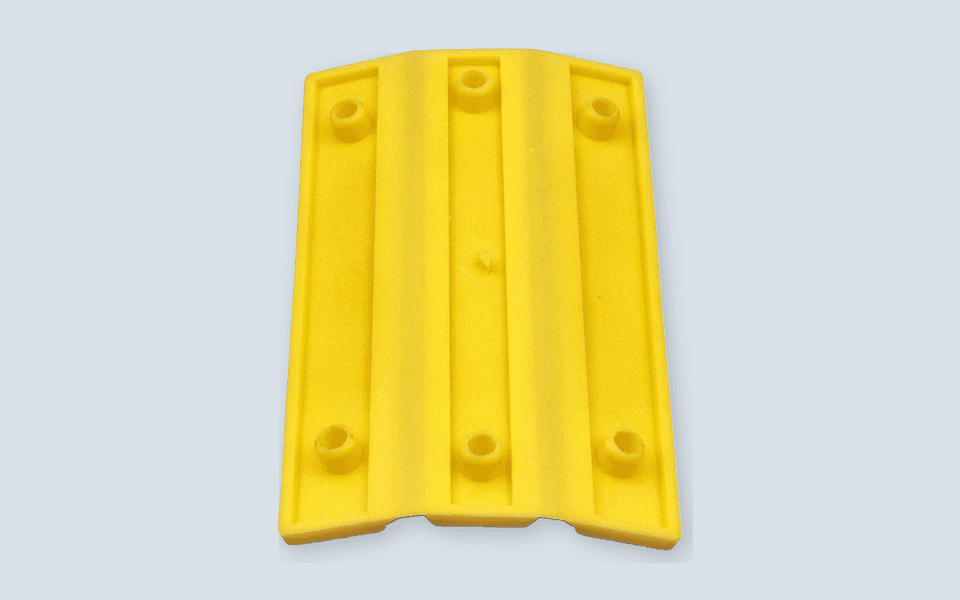

ThyssenKrupp Boot Liner is a replaceable sliding insert used inside elevator guide shoes to maintain smooth movement between the guide shoe and elevator guide rail.

The liner works as the contact surface between the guide shoe and the rail. During elevator operation, it absorbs continuous sliding friction and helps reduce vibration, noise, and uneven movement caused by direct contact between metal components.

This product may also be searched as:

• ThyssenKrupp Boot Liner

• ThyssenKrupp Guide Shoe Liner

• Elevator Guide Shoe Insert

• Elevator Sliding Shoe Liner

• Guide Shoe Wear Pad

• Elevator Rail Contact Liner

• ThyssenKrupp Elevator Guide Shoe Spare Part

A Wear Part Inside the Guide Shoe

Unlike electronic components, a guide shoe liner gradually wears during normal elevator operation.

After extended running time, the liner surface may become thinner, damaged, uneven, or contaminated by rail debris. A worn liner can affect the relationship between the elevator car and guide rail, leading to:

• increased running noise

• vibration during travel

• unstable car movement

• uneven guide clearance

• increased friction

• abnormal wear on the guide rail

In maintenance work, replacing only the liner is often more economical than replacing the complete guide shoe, provided that the shoe body and spring mechanism remain in good condition.

Match the Liner With the Guide Shoe

ThyssenKrupp elevator systems use different guide shoe designs depending on elevator type, load capacity, speed, and guide rail specification.

The liner should be identified from the complete guide shoe structure rather than appearance alone.

Useful information includes:

• old liner photos

• overall liner dimensions

• thickness measurement

• guide shoe model

• guide rail size

• material type

• fixing method

• complete guide shoe photo

• elevator load and speed information

Important dimensions usually include:

• liner length

• liner width

• liner thickness

• contact surface shape

• mounting groove structure

A liner with incorrect thickness or contact geometry may create excessive clearance or insufficient adjustment range after installation.

Signs That the Liner Needs Replacement

Technicians normally replace a boot liner when they find:

• visible wear marks

• cracks or broken edges

• excessive gap between liner and rail

• abnormal sliding noise

• uneven wear pattern

• damaged liner surface

• increased vibration during operation

During replacement, the guide rail condition should also be checked. A damaged or contaminated rail surface can quickly wear a new liner.

Recommended inspection points include:

• guide rail cleanliness

• rail lubrication condition

• guide shoe spring pressure

• shoe body condition

• alignment between shoe and rail

Application in Elevator Maintenance

ThyssenKrupp Boot Liners are commonly supplied for elevator repair and modernization projects where original guide shoe inserts have reached their service limit.

For maintenance companies in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, providing the old liner photo together with the complete guide shoe picture can help confirm the correct replacement.

FAQ

What is the function of a ThyssenKrupp Boot Liner?

The boot liner is the replaceable sliding part inside the guide shoe. It contacts the guide rail and helps maintain smooth elevator movement.

Is a boot liner the same as a complete guide shoe?

No. The liner is only the replaceable wear insert. The complete guide shoe includes the housing, spring mechanism, and other mechanical parts.

How often should the liner be replaced?

There is no fixed replacement interval. It depends on elevator usage, load, travel frequency, guide rail condition, lubrication, and operating environment.

Can any guide shoe liner be used for ThyssenKrupp elevators?

No. The liner dimensions, thickness, material, and guide rail compatibility must match the original design.

What information should I send before quotation?

Please provide liner photos, dimensions, complete guide shoe photos, guide rail size, and elevator model if available.
