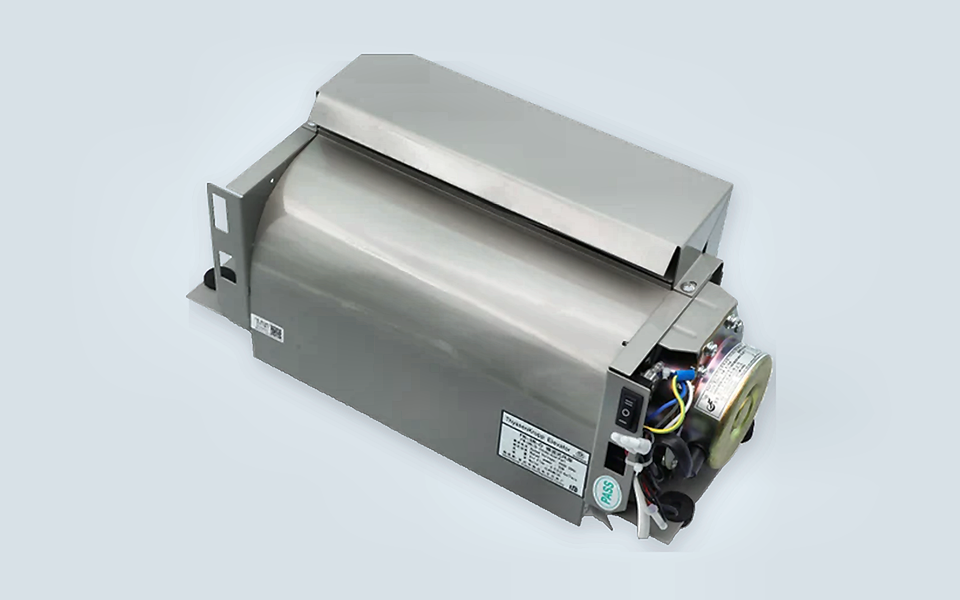

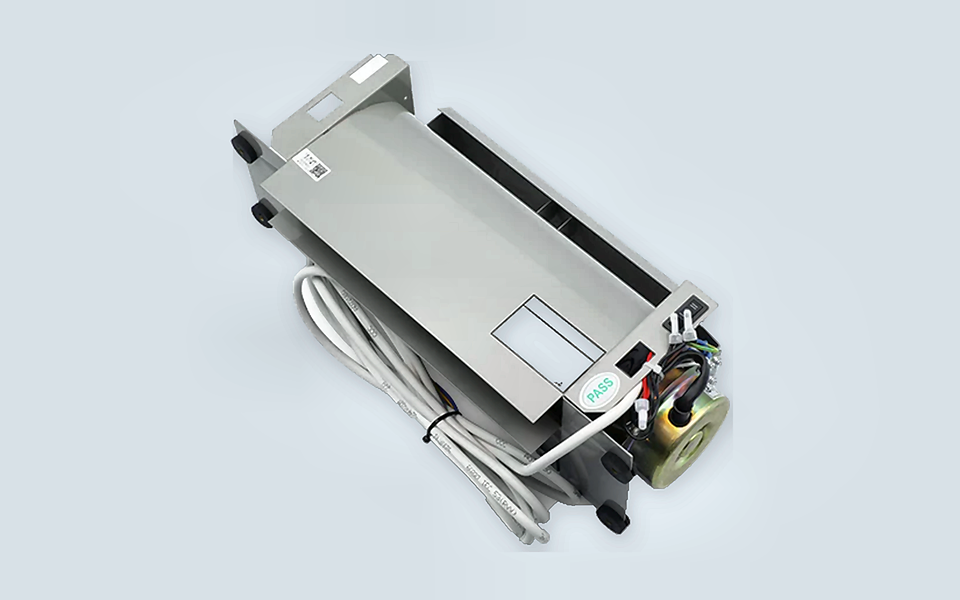

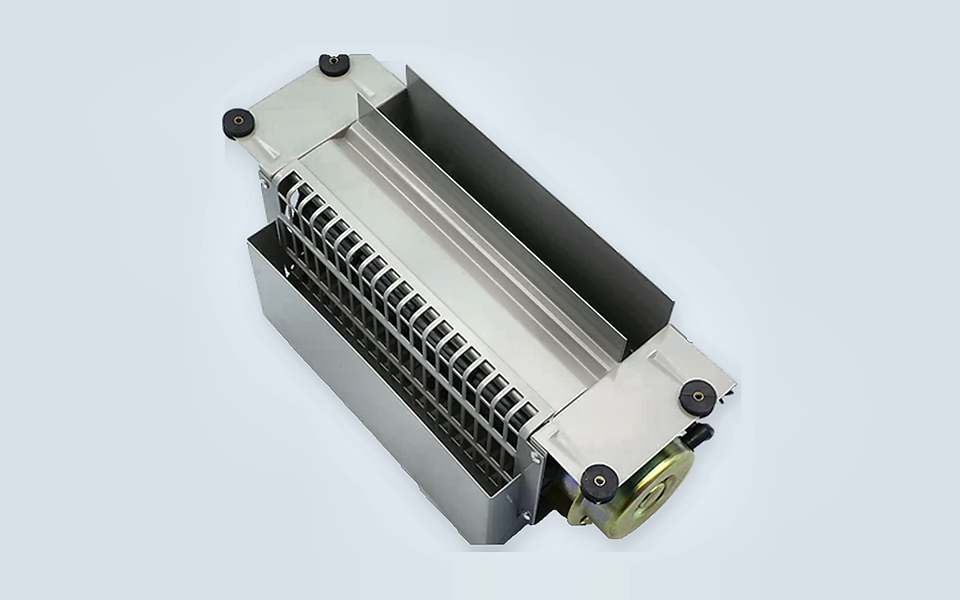

ThyssenKrupp Elevator Cabin Fan FB-9B

ThyssenKrupp FB-9B Elevator Fan is a cross-flow ventilation fan used for elevator cabin air circulation and passenger comfort.

The fan is normally installed on the elevator car ceiling or top panel and helps maintain airflow inside the cabin during operation. A stable ventilation system reduces heat accumulation, improves passenger comfort, and supports better air circulation in enclosed elevator spaces.

The FB-9B design is widely used as a replacement cabin fan for different elevator brands, including ThyssenKrupp systems. It should therefore be matched according to voltage, dimensions, mounting structure, and electrical connection rather than brand name alone.

This product may also be searched as:

• ThyssenKrupp FB-9B Fan
• ThyssenKrupp Elevator Cabin Fan
• Elevator Cross Flow Fan FB-9B
• Elevator Ventilation Fan
• Elevator Car Top Fan
• Elevator Cabin Exhaust Fan
• Elevator Blower Fan
• FB-9B Cross Flow Blower

More Than Just Air Circulation

Although the cabin fan is a relatively simple electrical component, continuous operation in an elevator environment places higher requirements on noise, vibration, and reliability.

A worn or damaged fan may cause:

• abnormal operating noise
• weak airflow
• increased vibration
• intermittent stopping
• motor overheating
• passenger discomfort due to poor ventilation

In some cases, the problem is not caused by the fan motor itself. Dust accumulation, loose mounting brackets, unstable power supply, or damaged wiring can create similar symptoms.

Before replacing the fan, technicians should check the complete ventilation assembly.

Check the Electrical Specification and Installation

FB-9B fans are available in different voltage versions and configurations. Similar-looking fans may have different motors, wiring, mounting holes, or airflow performance.

Common identification points include:

• FB-9B model marking
• rated voltage
• frequency
• power consumption
• cable length
• connector type

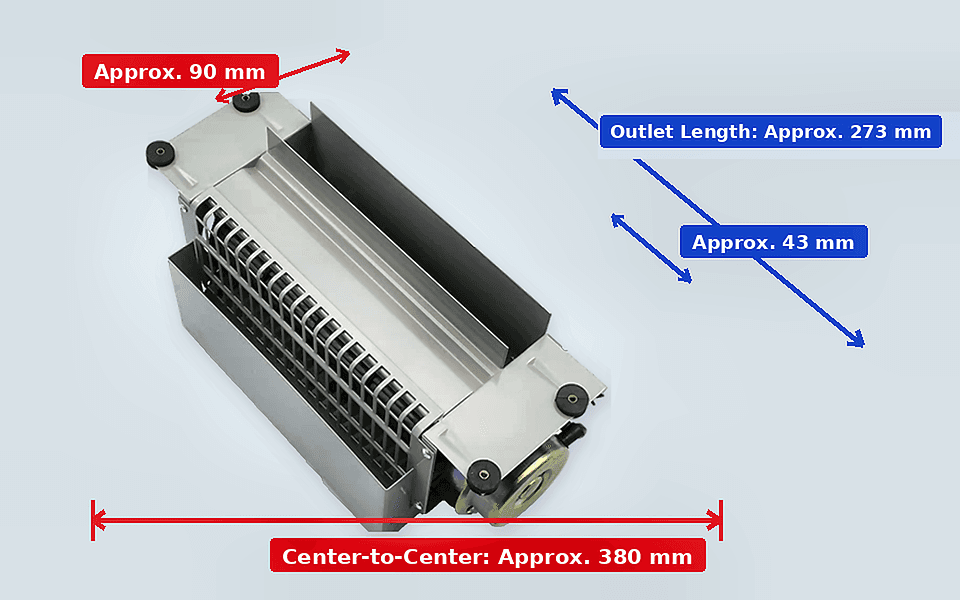

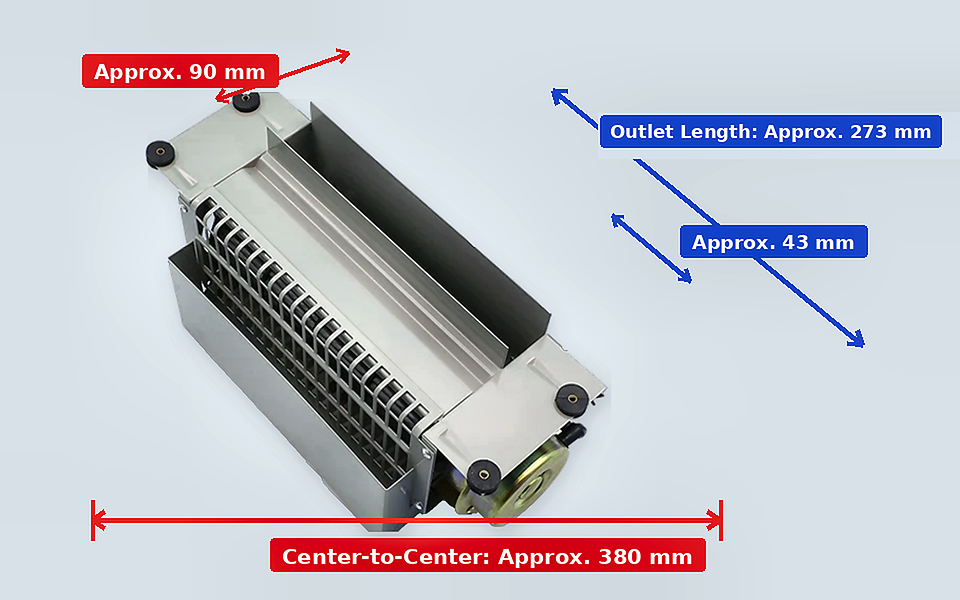

• fan dimensions
• mounting bracket position
• airflow direction
• installed location

Typical FB-9B versions are available in AC100V, AC110V, AC220V, and AC230V configurations depending on application. Some suppliers list common versions around 25W, while other OEM applications may differ.

Before quotation, please provide:

• old fan label photo
• voltage information
• complete fan size
• connector and cable photo
• mounting position photo
• elevator cabin ceiling photo
• quantity required

Common Replacement Situations

An elevator cabin fan is usually replaced when:

• motor does not start
• fan blade rotation becomes unstable
• bearing noise increases
• airflow becomes noticeably weaker
• motor temperature rises abnormally
• housing or mounting bracket is damaged

During replacement, technicians should also inspect:

• fan power supply
• electrical connector
• mounting screws
• surrounding dust accumulation
• ventilation opening condition

A new fan installed in a blocked or poorly maintained ventilation area may not achieve the expected cooling effect.

Application in Elevator Maintenance Projects

FB-9B cabin fans are widely used in elevator repair and modernization projects where original ventilation units have reached the end of their service life.

For maintenance companies in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, providing the old fan photo, voltage label, and installation position can help confirm the correct replacement quickly.

FAQ

Is FB-9B a ThyssenKrupp original fan?

FB-9B is a commonly used elevator cabin ventilation fan model and is supplied for many elevator brands, including ThyssenKrupp compatible applications. It should be matched by specification and installation details.

What is the function of an elevator cabin fan?

It circulates air inside the elevator cabin, improving passenger comfort and reducing heat accumulation.

Can any FB-9B fan replace the existing one?

Not always. Voltage, cable connection, dimensions, mounting position, and airflow direction should be confirmed before replacement.

What voltage does FB-9B use?

Different versions are available. Common models include AC220V and other voltage options, so the original fan label should be checked before ordering.

What information should I send before quotation?

Please provide the fan label, voltage, dimensions, cable connector photo, mounting position, and quantity required.
