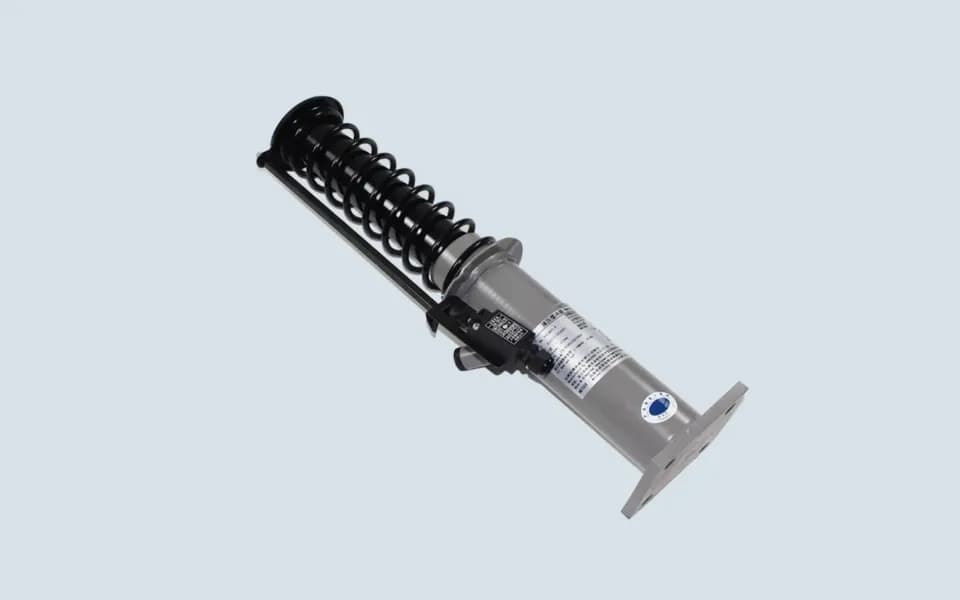

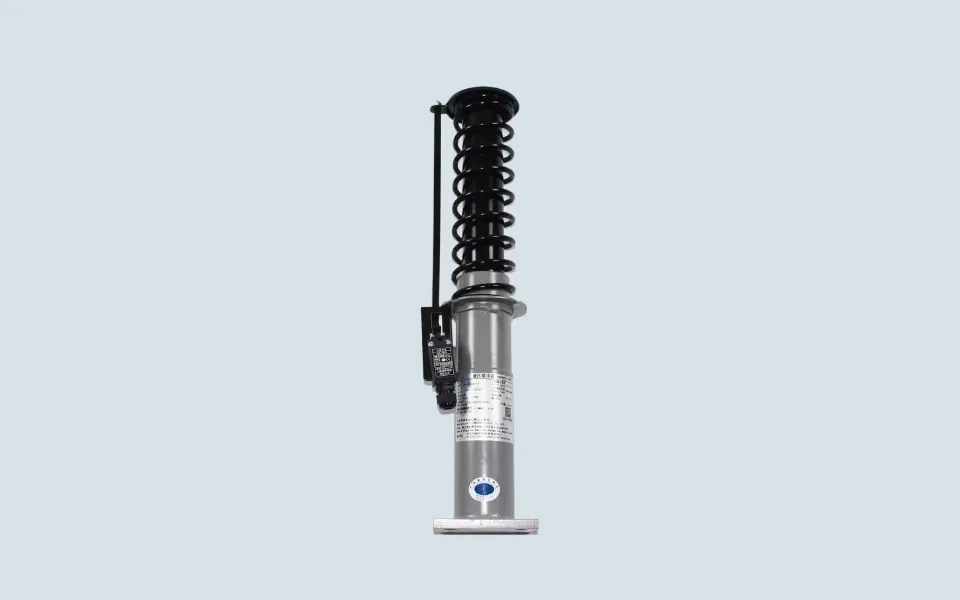

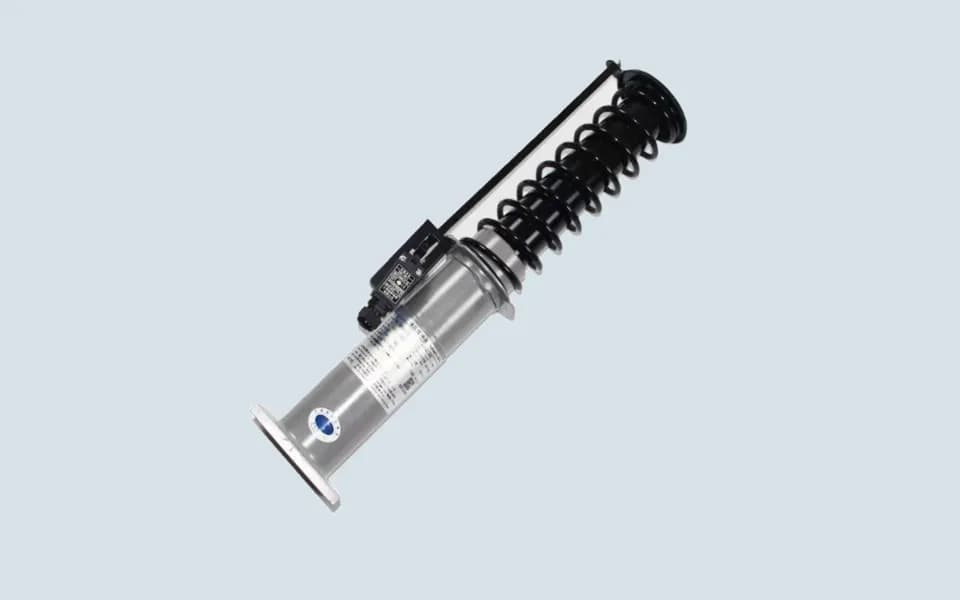

XIOLIFT Hydraulic Buffer XHCQ07/09/10-E

XIOLIFT Hydraulic Buffer XHCQ07/09/10-E is used in elevator pit safety protection and car or counterweight buffer applications.

This product is normally installed in the elevator pit under the car or counterweight travel path. When the elevator moves beyond the normal stopping position, the hydraulic buffer helps absorb impact energy and reduce sudden mechanical shock. Because it is a safety-related component, replacement must be confirmed carefully according to the original elevator design and site condition.

In elevator spare parts purchasing, this product may be searched as:

• XIOLIFT Hydraulic Buffer

• XHCQ07 Hydraulic Buffer

• XHCQ09 Hydraulic Buffer

• XHCQ10-E Hydraulic Buffer

• Elevator Hydraulic Buffer

• Elevator Pit Buffer

• Elevator Safety Buffer

• Elevator Car Buffer

• Elevator Counterweight Buffer

The main references for this page are:

• XHCQ07-E

• XHCQ09-E

• XHCQ10-E

• XHCQ07/09/10-E

• XIOLIFT XHCQ Hydraulic Buffer

XHCQ07, XHCQ09, and XHCQ10-E should be checked as related model references, but they should not be treated as the same buffer. The correct model depends on elevator speed, rated load, buffer stroke, installation height, pit space, and original buffer specification.

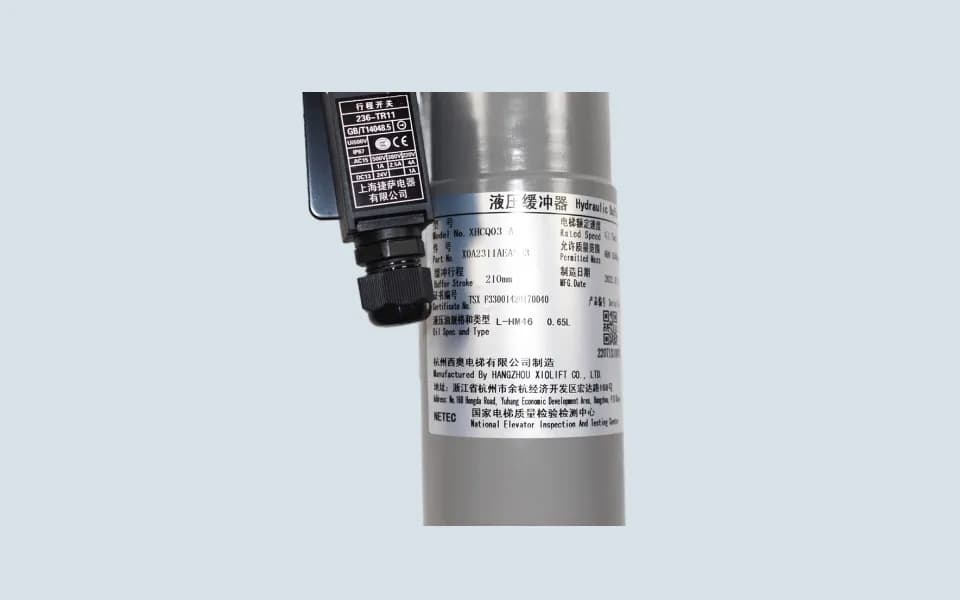

Before ordering, buyers should confirm the old buffer nameplate, complete model number, rated speed or load marking if available, buffer stroke, total height, plunger diameter, base mounting hole distance, oil leakage condition, and installation position in the pit. Photos of the old buffer from the front, side, top, base plate, and nameplate are strongly recommended.

This hydraulic buffer may be replaced when the old unit has oil leakage, damaged plunger, poor return after compression, rusted body, deformed base, missing nameplate, or failed inspection. However, technicians should also check the pit foundation, buffer stand, guide alignment, impact plate position, and elevator inspection records before confirming replacement.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, accurate model and dimension confirmation is very important before shipment. Hydraulic buffers are heavier and more sensitive to wrong selection than small spare parts, so old nameplate photos and site measurements should be checked before packing.

FAQ

Can XHCQ07, XHCQ09, and XHCQ10-E replace each other?

Not directly. These models may belong to the same buffer series, but the stroke, size, load range, or application may be different. Please confirm the old nameplate and elevator specification before ordering.

What photos should I send before quotation?

Please send the old buffer nameplate, full body photo, base mounting hole photo, top plunger photo, and pit installation position photo.

Is oil leakage a reason to replace the buffer?

Yes, oil leakage is one common reason for replacement. But the technician should also check whether the plunger, seal, pit base, and impact position are still correct.

Can I order only by the model number?

The model number is important, but hydraulic buffers should also be confirmed by height, stroke, base holes, rated information, and installation position.
