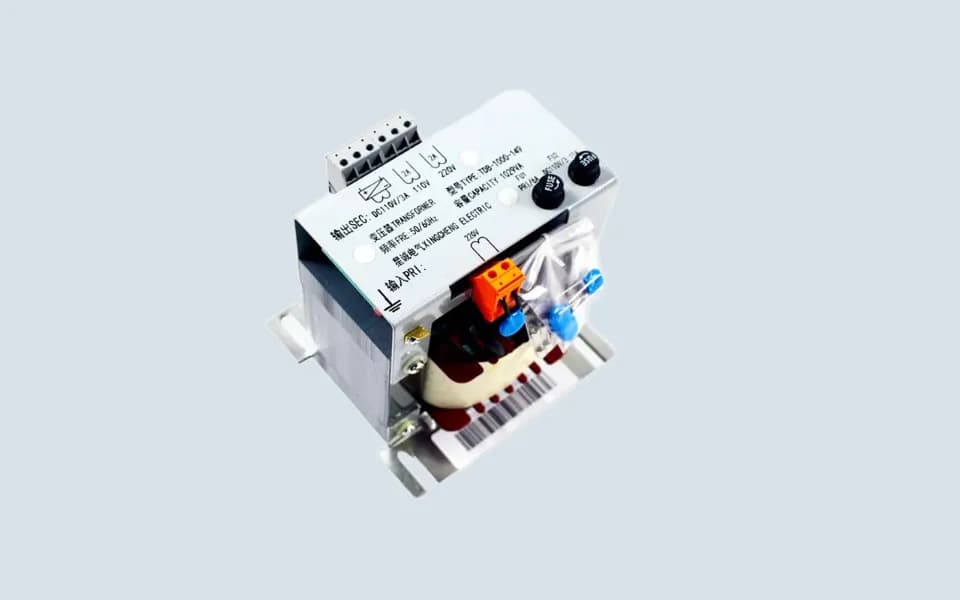

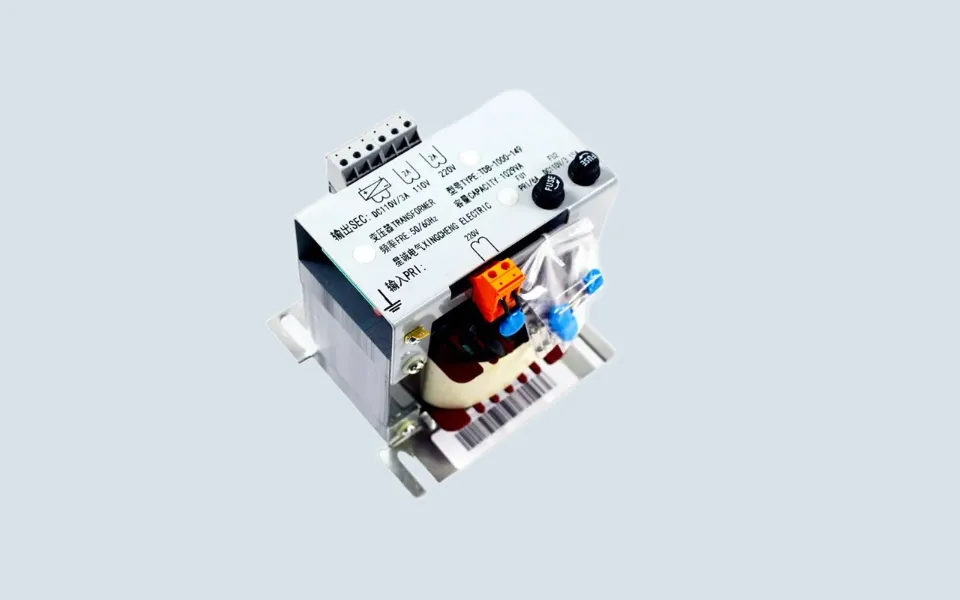

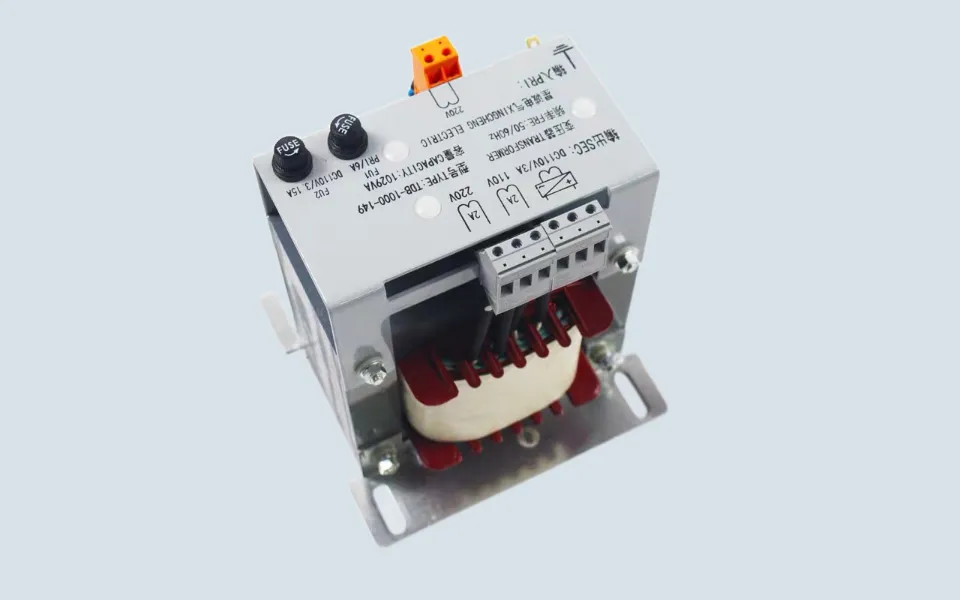

XIOLIFT Transformer FDB-1000-149

XIOLIFT Transformer FDB-1000-149 is an elevator control cabinet transformer used for power conversion and auxiliary circuit supply in XIOLIFT elevator systems.

Unlike a switching power supply board or an inverter component, this transformer should be confirmed mainly from its nameplate and wiring condition. In many repair jobs, the old transformer may still look normal from the outside, but the actual problem may be no output voltage, unstable auxiliary power, burned smell, damaged terminals, or abnormal heating inside the control cabinet.

For purchasing and replacement, this product may also be searched as:

• XIOLIFT Transformer FDB-1000-149

• FDB-1000-149 Transformer

• XIOLIFT Elevator Transformer

• Elevator Control Cabinet Transformer

• Elevator Auxiliary Power Transformer

• Elevator Power Transformer

• XIOLIFT Control Transformer

The main model references are:

• FDB-1000-149

• FDB 1000 149

• XIOLIFT FDB-1000-149

• XIOLIFT Transformer FDB-1000-149

For this type of transformer, the old label is more important than the shape. A similar transformer body may still have different input voltage, output voltage, rated capacity, terminal sequence, or mounting structure.

Before confirming the order, please check the following details from the old unit:

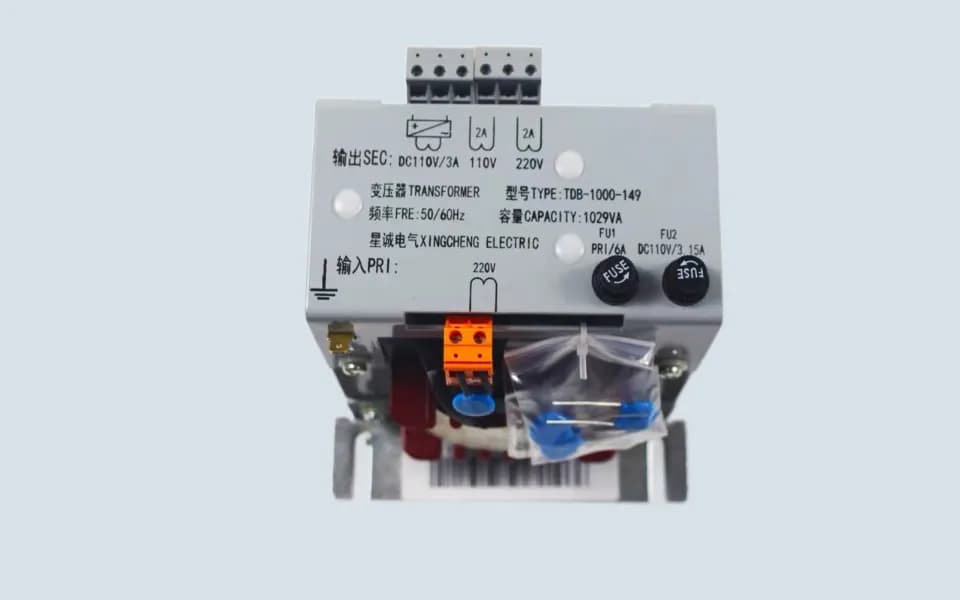

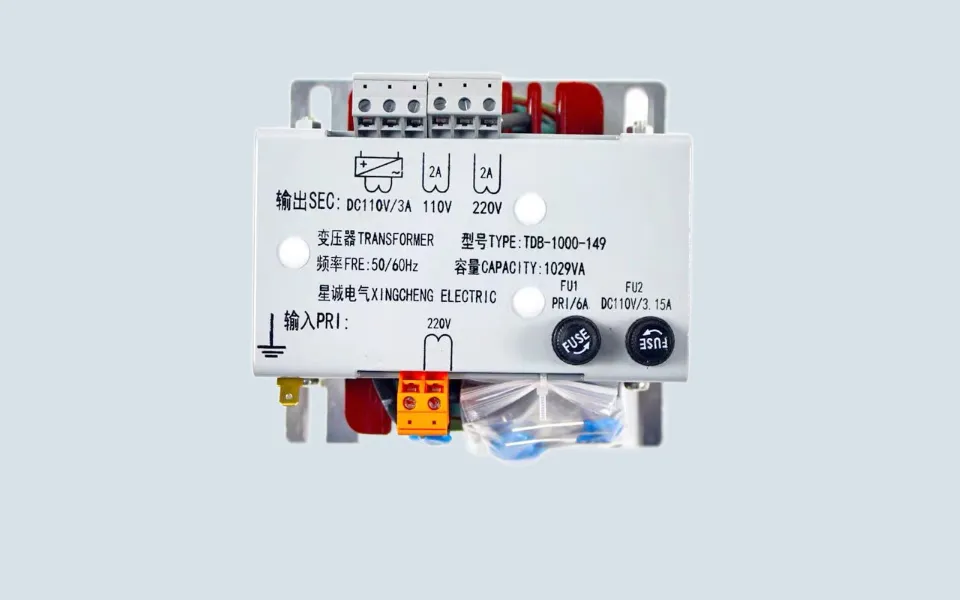

• complete model number on the nameplate

• input voltage marking

• output voltage marking

• rated capacity or power marking if shown

• terminal quantity and terminal layout

• wiring direction inside the cabinet

• mounting hole distance

• transformer size

• installation position in the control cabinet

• old label photo, terminal photo, and cabinet installation photo

This transformer is usually checked when the elevator has control power loss, relay circuit abnormality, no low-voltage output, unstable electrical response, burned transformer smell, or damaged wiring terminals. However, the fault may also come from load-side short circuit, loose wiring, damaged control boards, poor cabinet power supply, or incorrect previous maintenance wiring.

For overseas buyers, especially in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, it is recommended to send clear photos before shipment. If FDB-1000-149 is ordered together with XIOLIFT control boards, relays, power supply boards, brake boards, or other elevator electrical spare parts, the transformer label and terminal wiring should be checked before packing.

FAQ

Is FDB-1000-149 the same as other XIOLIFT transformers?

Not necessarily. Other XIOLIFT transformers may look similar, but the voltage rating, terminal layout, capacity, and mounting size can be different.

Can I order only by the model number?

The model number is important, but the old nameplate, input/output voltage, terminal wiring, and installation position should also be confirmed before ordering.

What photos should I send?

Please send the transformer label, terminal wiring photo, side view, mounting position, and a photo showing where it is installed inside the control cabinet.

Is this a switching power supply?

No. This product is described as a transformer. It should be matched by transformer nameplate information, not by DC power supply module specifications.
