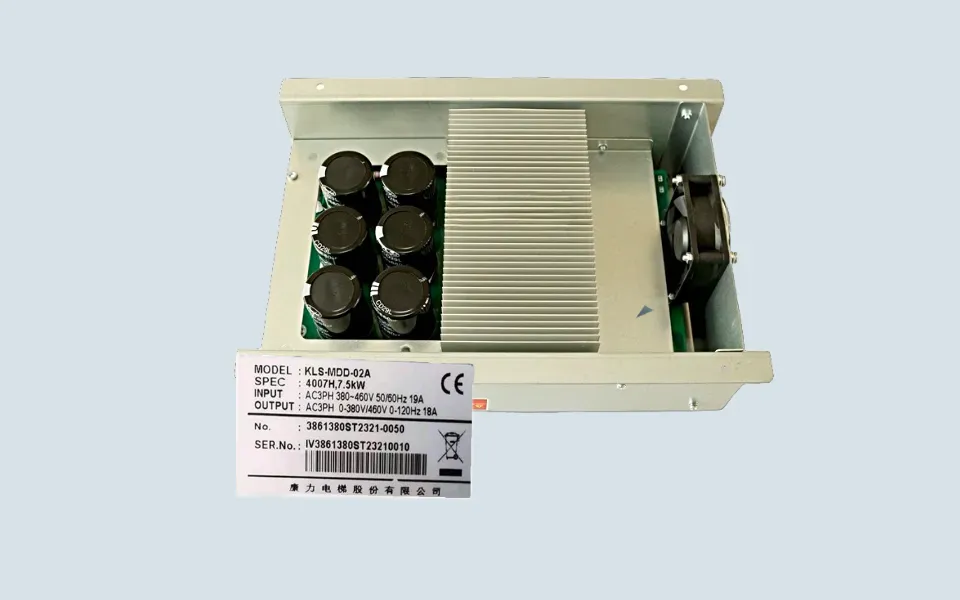

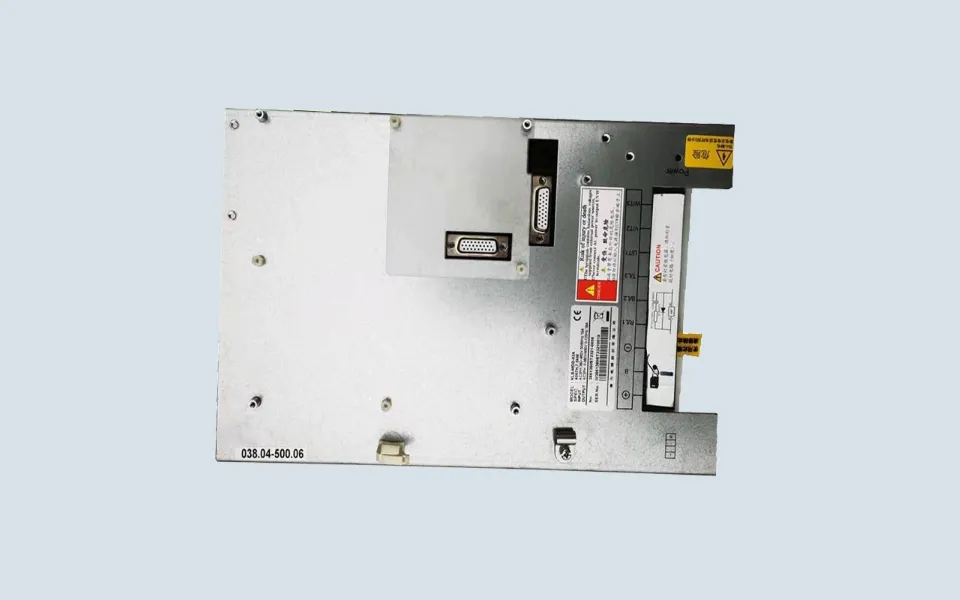

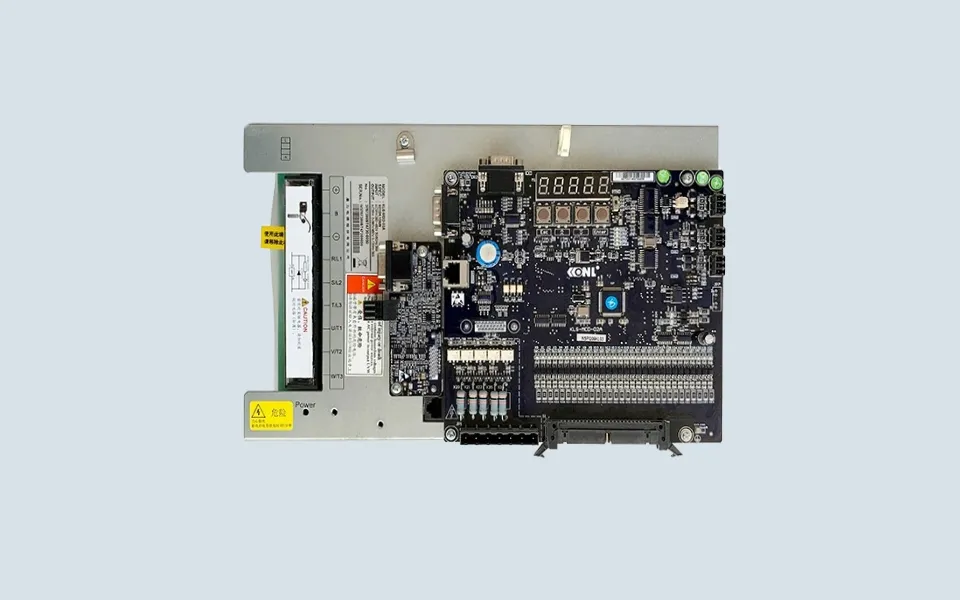

CANNY Elevator Inverter KLS-MDD-02A

CANNY Elevator Inverter KLS-MDD-02A is used in CANNY elevator traction drive and frequency conversion control applications.

This product should be understood as a main elevator drive inverter, not a door operator inverter. It is normally related to the elevator traction system, where it helps control motor speed, acceleration, deceleration, running comfort, and leveling performance.

In the elevator spare parts market, this product may also be searched as:

• CANNY Elevator Inverter
• CANNY Elevator Frequency Converter
• CANNY Traction Inverter
• CANNY Elevator Drive Inverter
• KLS-MDD-02A Frequency Converter
• CANNY Elevator VVVF Inverter
• Elevator Main Drive Inverter

The main model reference for this page is:

• KLS-MDD-02A

Common power options may include:

• 4007H 7.5kW
• 4011H 11kW
• 4015H 15kW

These power references are useful for quotation and replacement confirmation. The final selection should still be based on the old inverter label, motor power, rated current, elevator speed, control system configuration, and site wiring.

Main Drive Application

KLS-MDD-02A is used for elevator main drive control.

Unlike a small door machine controller, this inverter is connected with the traction motor and elevator drive system. It may affect starting torque, running speed, deceleration curve, leveling accuracy, ride comfort, and fault response.

For this reason, KLS-MDD-02A should not be selected only by the inverter model name. The power size and site parameters must be checked carefully before ordering.

Power Size Confirmation

Before selecting CANNY Elevator Inverter KLS-MDD-02A, buyers should confirm whether the required unit is:

• 7.5kW
• 11kW
• 15kW

The power size should match the original elevator motor and drive cabinet requirement.

If a lower-power inverter is selected, the elevator may not run correctly under load. If a different power range is selected without checking the site parameters, wiring, braking resistor, or motor configuration, commissioning problems may occur after installation.

What Buyers Should Confirm

Before ordering, please provide:

• Complete KLS-MDD-02A label photo
• Power rating, such as 7.5kW, 11kW, or 15kW
• 4007H, 4011H, or 4015H marking if visible
• Motor power and rated current
• Elevator speed and load if available
• Control cabinet photo
• Terminal wiring photo
• Braking resistor information if available
• Existing inverter fault code or fault description

For elevator drive products, a label photo is usually not enough. The motor and control cabinet information are also important for correct matching.

Practical Replacement Notes

Do not replace KLS-MDD-02A only by appearance.

Elevator inverters may have the same outer housing but different power ratings, parameter settings, control signal requirements, or software versions. After replacement, technicians may need to set parameters, check motor data, confirm encoder or feedback configuration, test braking response, and perform elevator running inspection.

If the original inverter was damaged by unstable power supply, motor short circuit, braking resistor problem, cabinet overheating, wiring fault, or external control circuit issue, replacing only the inverter may not fully solve the problem.

For overseas buyers, sending clear photos of the old KLS-MDD-02A inverter label, control cabinet wiring, and motor nameplate can help confirm the correct replacement before shipment.
