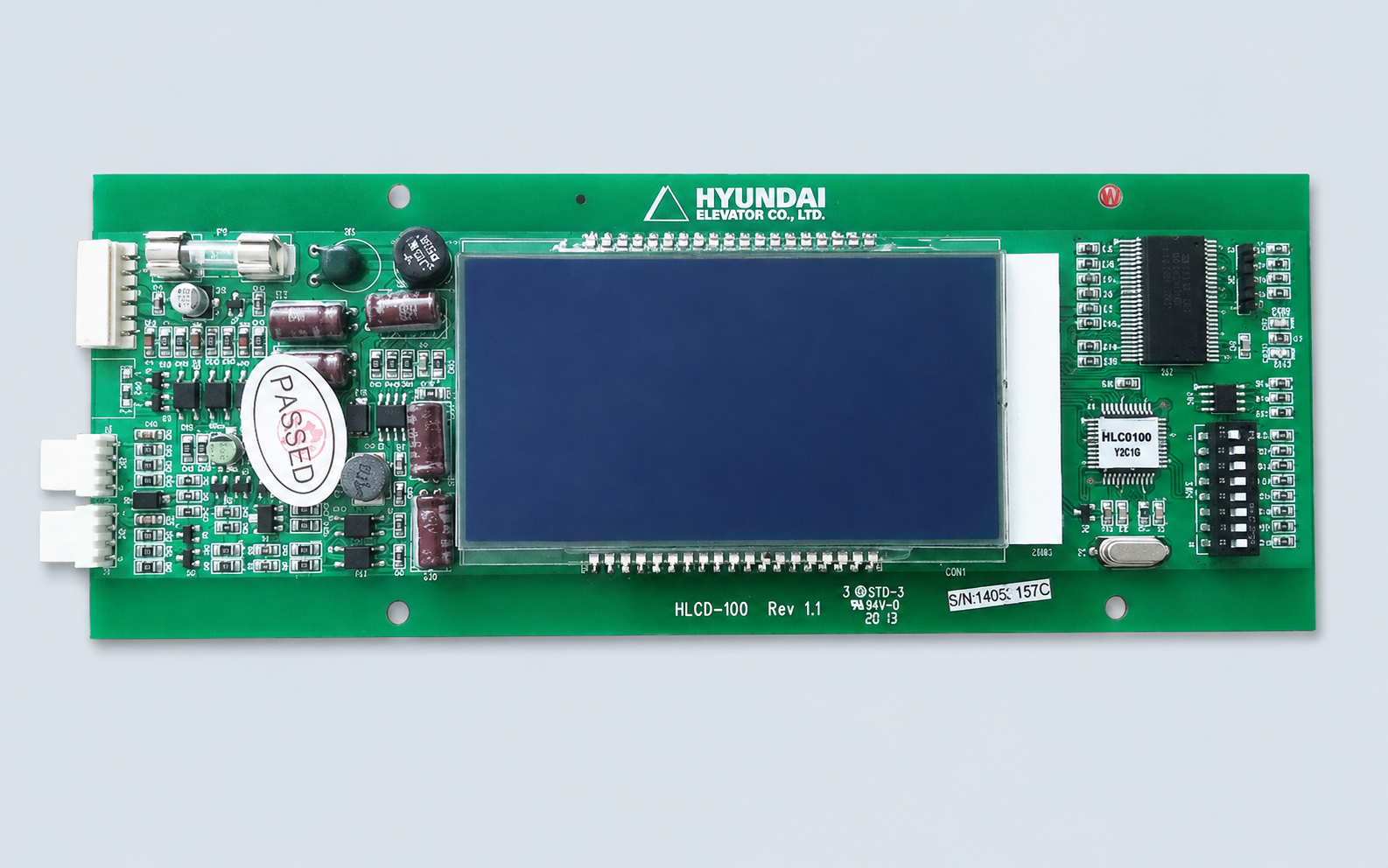

Hyundai STVF-2S HLCD-100 LCD Display Board

The Hyundai STVF-2S HLCD-100 LCD Display Board is a landing display component used in Hyundai STVF-2S elevator systems. It is installed in the hall operating and indication area to provide passengers with elevator status and floor information.

LCD Display for the Landing Area

Unlike a conventional dot-matrix indicator, the HLCD-100 uses an LCD display format and is commonly associated with the elevator hall call or landing display system.

It may be required when the original LCD has display problems, damaged electronics or needs complete replacement during elevator maintenance.

When checking an HLCD-100 replacement, the front display alone is not enough. The rear electronics and connection arrangement should also be compared.

Useful identification details include:

• Display model: HLCD-100

• Elevator system: STVF-2S

• Front and rear photos

• LCD appearance

• Connector configuration

• PCB revision or additional label

• Related LOP installation photo

• Required quantity

Look at the Complete Display Unit

Older STVF-2S installations may use different landing indicator configurations. If the original unit has no clear part number other than HLCD-100, send photos of the complete display and rear connectors for comparison.

FAQ

What is the Hyundai HLCD-100 used for?

It is used as an LCD landing display or hall call indication panel in Hyundai STVF-2S elevator applications.

Is HLCD-100 the same as HDOT-102M?

No. HLCD-100 is an LCD-type display, while HDOT-102M is commonly identified as a parallel dot-matrix display board. They should be treated as different display products.

What should I provide before ordering?

Please send front and rear photos of the HLCD-100, connector details and any revision or identification labels visible on the unit.

For Hyundai STVF-2S HLCD-100 requirements, send us the existing display information for replacement checking before quotation.
