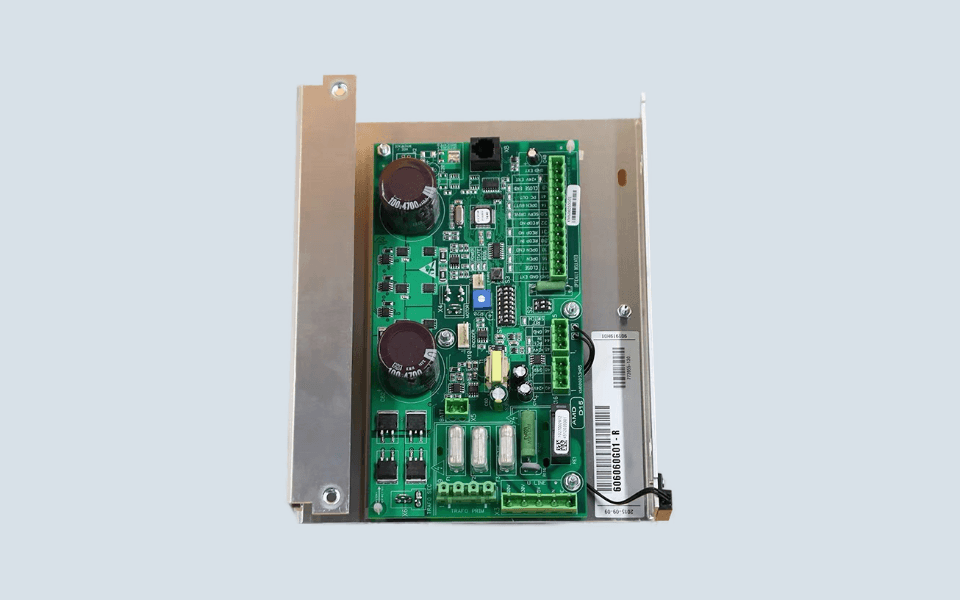

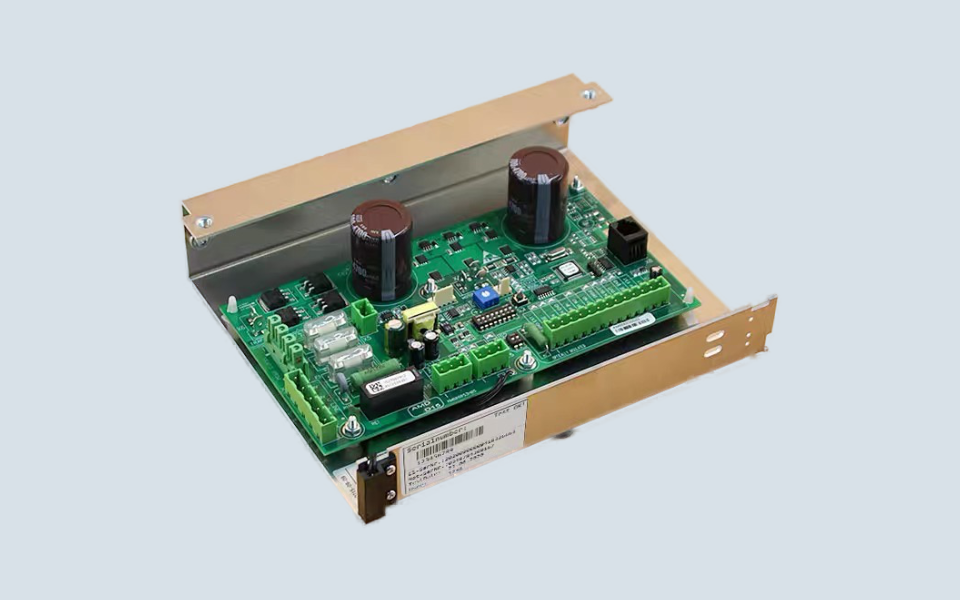

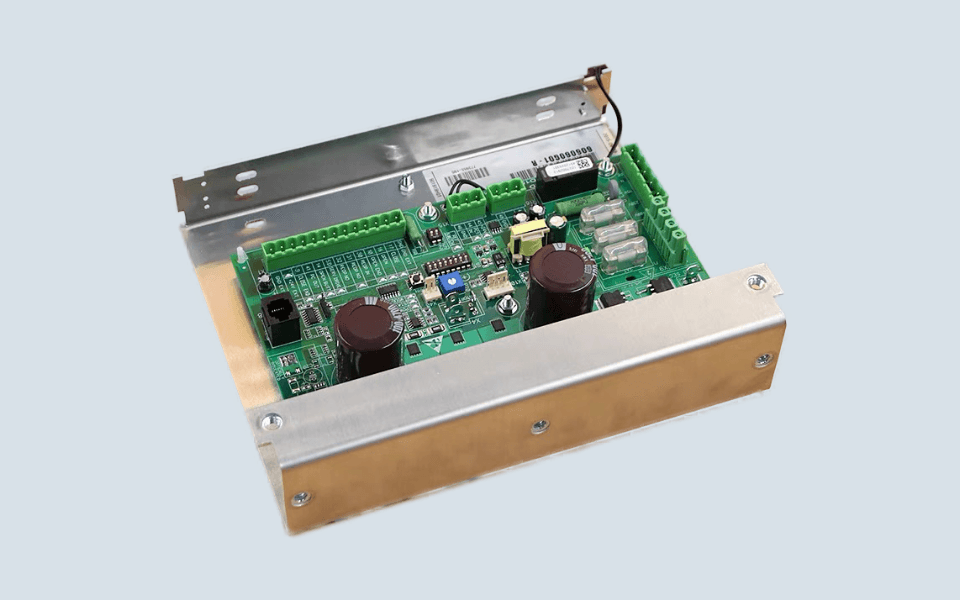

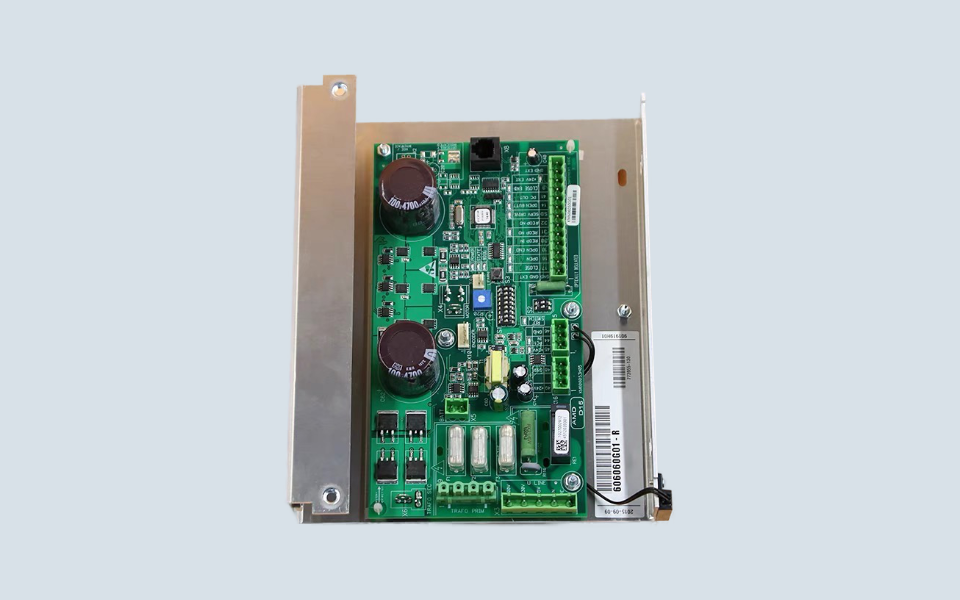

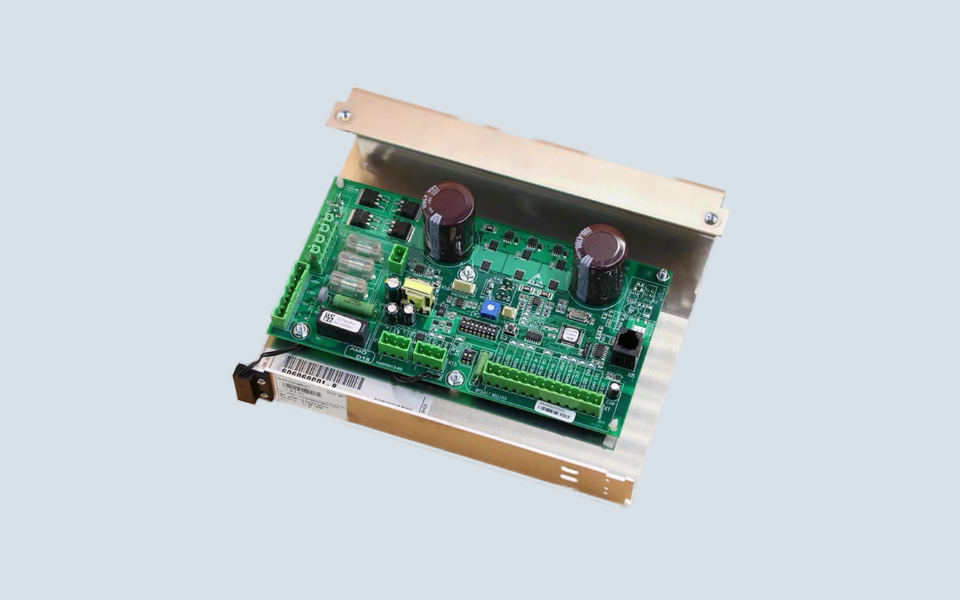

KONE AMD Door Drive PCB KM606060G01

KONE AMD Door Drive PCB KM606060G01 is used in KONE elevator automatic door operator control systems.

This product is part of the door drive control area. It should not be treated as a door motor, because the door motor provides the physical movement while the door drive PCB manages the electrical control response of the door operator system.

In the elevator spare parts market, this product may also be searched as:

• KONE Door Controller Board KM606060G01
• KONE AMD Door Drive PCB
• KONE Door Operator Board
• KONE Door Motor Board
• KONE Door Drive Controller
• KONE Door Operator Inverter
• KONE Elevator Door Control PCB
• KONE AMD Door Controller Board

The main model reference for this page is:

• KM606060G01

Related model references may include:

• 606060G01-R
• KM606050G01
• KM606053H05
• SLKNCC03004S01

These references are useful for search coverage and customer inquiry matching. However, they should not be treated as automatic replacement approval. The final supply should be confirmed by the old controller label, door operator system, connector layout, and site wiring.

Where KM606060G01 Fits in the Door System

KM606060G01 belongs to the KONE door operator control section.

It may be involved in door opening command, door closing command, door motor drive response, door protection signal processing, and door movement control. When the board is not working correctly or does not match the original door system, the elevator door may fail to open, fail to close, move unstably, or show door operator fault behavior.

This is why KM606060G01 should be matched by the exact board number and old unit photos, not only by the general name “door controller board.”

606060G01-R and KM606050G01 Should Be Checked Carefully

A common point with this product is that buyers may see more than one number in the same inquiry.

Some market listings show 606060G01-R together with KM606050G01 and KM606053H05. This means the old unit, internal PCB, replacement reference, or supplier label may not always show the same number in the same way.

For this reason, before quotation, buyers should check:

• KM606060G01 marking on the old board
• 606060G01-R marking if visible
• KM606050G01 or KM606053H05 reference if shown on the old unit
• SLKNCC03004S01 reference if available
• complete controller board photo
• connector side photo
• door operator installation photo
• door motor label if available
• existing door fault description from the technician

If the old board is marked KM606050G01 only, it should be checked separately instead of assuming it is the same as KM606060G01.

How This Page Differs From Other KONE Door Controller Pages

KM606060G01 should have its own product description.

It should not reuse the same text as KM606050G01, KM606040G01, KM602810G02, or KM603800G01. These are all KONE door control related products, but they may belong to different door controller groups, electronic box structures, internal PCB references, or replacement versions.

KM606060G01 is better positioned as a KONE AMD door drive PCB or door operator drive board. This makes the page easier for buyers to identify when they search by the 606060G01 or 606060G01-R reference.

Door Problems That May Lead to Inspection

Maintenance teams may inspect this board when the elevator door has problems such as:

• door motor not responding
• door opening failure
• door closing failure
• unstable door movement
• repeated door reopening
• door stops before fully closed
• door operator fault indication
• visible damage on the PCB or connector area

These symptoms are not always caused by the door drive PCB itself. The door motor, encoder or feedback signal, door belt, pulley, hanger rollers, light curtain, door lock signal, connector terminals, and door operator wiring should also be checked before confirming the board fault.

Supply and Replacement Notes

Do not select KM606060G01 only by appearance.

KONE door operator boards may look similar, but the internal board version, connector definition, door system compatibility, and software or parameter setting may be different. After replacement, technicians may need to check door learning, opening and closing response, door protection input, motor wiring, and controller signal condition.

For overseas buyers, sending clear photos of the original KM606060G01 board, 606060G01-R label if visible, connector area, door machine box, and complete door operator system is the safest way to reduce wrong supply before shipment.
