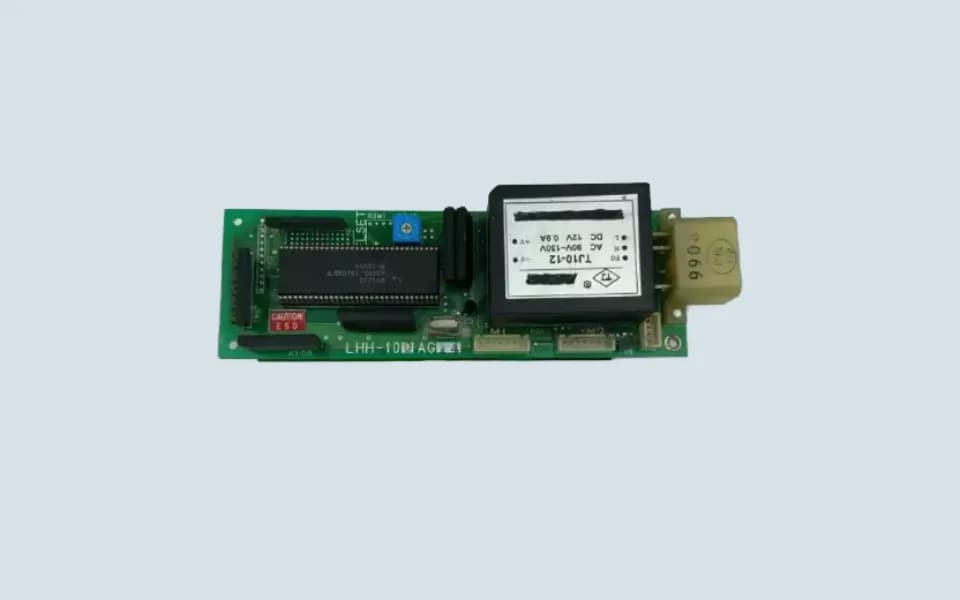

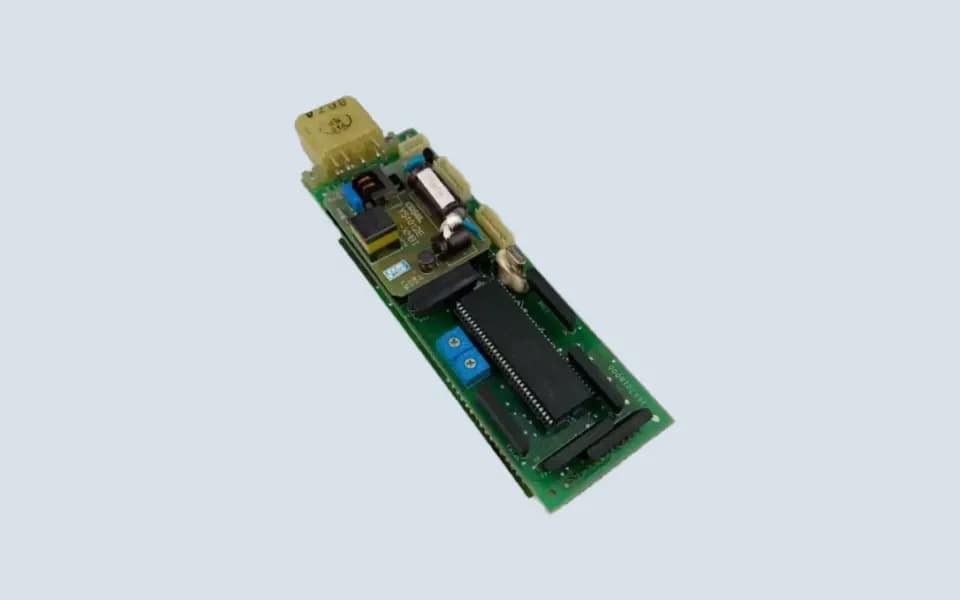

Mitsubishi LOP Display Board P366701B000G02 LHH-100AG24

Mitsubishi LOP Display Board P366701B000G02 LHH-100AG24 is used in Mitsubishi elevator landing operating panel and hall call display applications.

This display board is usually installed on the landing side of the elevator, where it supports floor indication, direction display, call status, or outbound display functions depending on the elevator system configuration.

In the elevator spare parts market, this product may also be searched as:

• Mitsubishi Elevator LOP Display Board
• Mitsubishi Elevator HOP Display Board
• Mitsubishi LCD Outbound Display Board
• Mitsubishi Landing Display Board
• Mitsubishi Hall Call Display Board
• Mitsubishi Elevator Indicator Board
• Mitsubishi Elevator PCB Outbound Board

The main model references for this page are:

• P366701B000G02
• LHH-100AG24
• LHA-022AG11
• LHH-100B G24
• YX300A787A-01

Some suppliers list P366701B000G02 together with LHA-022AG11 and LHH-100B G24 as a Mitsubishi elevator LOP display board. Other market descriptions connect LHH-100AG24 with Mitsubishi elevator outbound display board applications. For accurate replacement, the old board label and landing panel structure should still be confirmed before ordering.

LOP and HOP Display Application

This board should be understood as a landing-side display component, not a car operating panel display.

A buyer may call it LOP display board, HOP display board, outbound board, hall call display, or elevator indicator board. These names usually refer to the landing panel display area, but the correct model still depends on the old board label, connector layout, and panel design.

For Mitsubishi elevator projects, this board may be checked when the landing display has problems such as:

• no floor indication
• dim or unstable display
• wrong direction indication
• hall call display not responding
• display flickering
• visible PCB or connector damage
• abnormal landing panel signal response

These symptoms may also be caused by the landing button board, signal cable, power supply, connector terminals, or controller-side communication circuit.

Model Matching Notes

P366701B000G02 should not be selected only by display appearance.

Similar Mitsubishi landing display boards may have close front dimensions, but the PCB version, connector position, signal definition, or panel mounting structure may be different.

Before ordering, please confirm:

• Complete P366701B000G02 marking
• LHH-100AG24 or LHH-100B G24 marking if visible
• LHA-022AG11 marking if visible
• Front and back photos of the display board
• Display window size
• Connector quantity and direction
• Landing panel installation photo
• Whether the board is used in LOP, HOP, or outbound call display area

If the old label is unclear, a complete photo of the landing operating panel is usually more useful than only providing the elevator model.

Practical Replacement Notes

Do not mix this board with COP display boards used inside the elevator car.

Mitsubishi elevators may use different display boards for LOP, HOP, COP, hall call panels, and car operating panels. Even if the display style looks similar, the connector layout and communication signal may be different.

For overseas buyers, sending clear photos of the original P366701B000G02 / LHH-100AG24 board and the complete landing panel before shipment is the safest way to reduce wrong supply.
