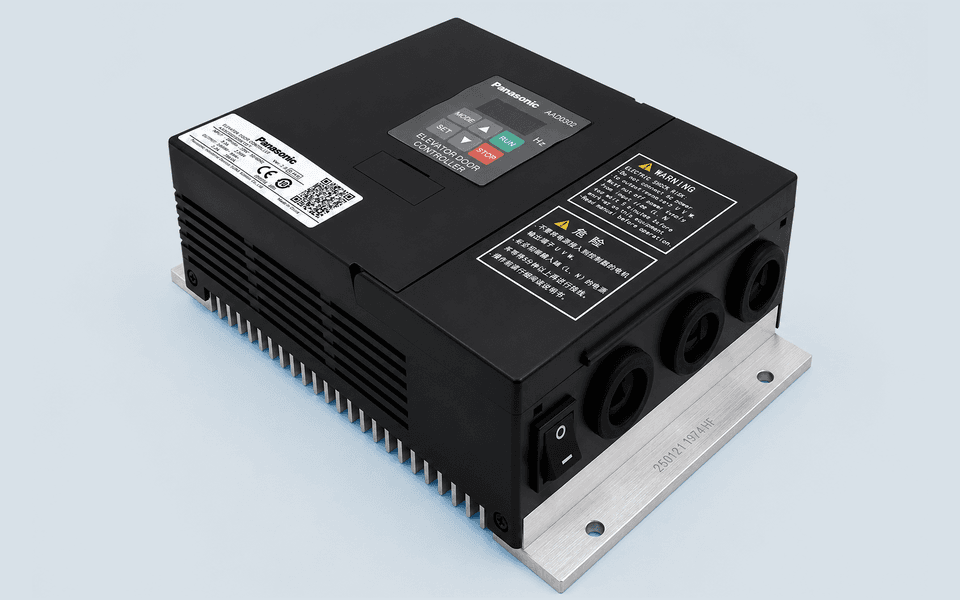

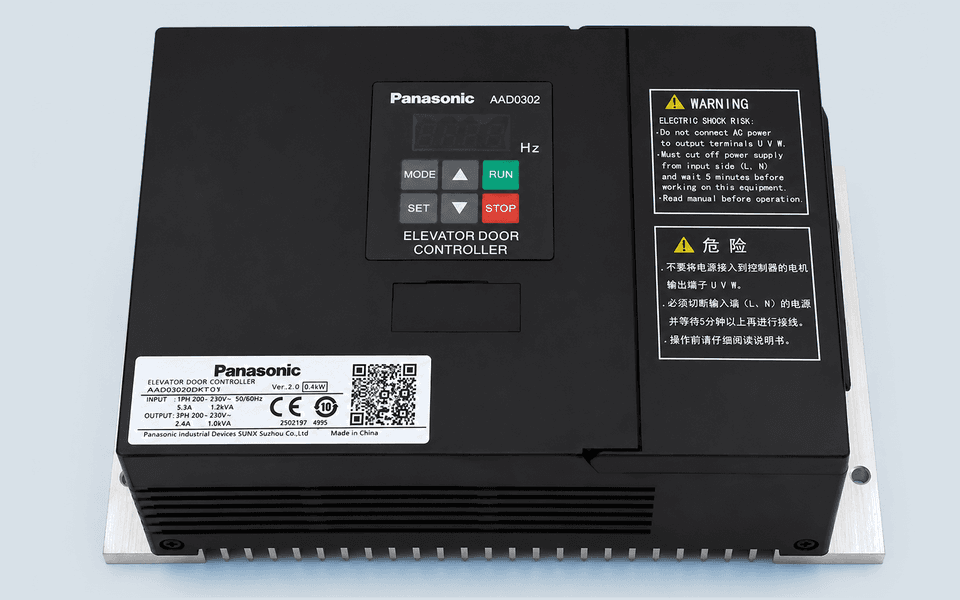

Panasonic Door Operator Inverter AAD03020DKT01 / AAD03020DT01

Panasonic Door Operator Inverter AAD03020DKT01 / AAD03020DT01 is used in elevator automatic door systems to control the door motor and support stable door opening and closing operation.

This inverter is normally installed inside the elevator door operator system and works with the door motor, signal wiring, door controller, limit signals, belt or linkage mechanism, hanger rollers, door panels, and safety devices. Its function is to drive the door motor according to the required speed curve, torque demand, opening and closing command, and site parameter setting.

This product may be searched as:

• Panasonic Door Operator Inverter AAD03020DKT01

• Panasonic Door Operator Inverter AAD03020DT01

• AAD03020DKT01 Door Inverter

• AAD03020DT01 Door Inverter

• Panasonic Elevator Door Inverter

• Elevator Door Operator Controller

• Lift Door Motor Inverter

• Elevator Door Drive Unit

The main references for this page are:

• AAD03020DKT01

• AAD03020DT01

• Panasonic door operator inverter

• Panasonic elevator door controller

Check the Exact Label Before Replacement

For this product, the full model number is very important. AAD03020DKT01 and AAD03020DT01 should be checked carefully because the difference in suffix may relate to version, application, wiring, or system matching.

Before ordering, buyers should not rely only on appearance. A similar Panasonic door inverter may have different terminal definitions, connector layout, software version, parameter settings, or motor matching requirements. The old inverter label and wiring area should be used as the first confirmation reference.

Recommended details to confirm include:

• old inverter label photo

• AAD03020DKT01 or AAD03020DT01 marking

• input voltage and output rating

• matched door motor model

• door operator brand or structure

• connector and terminal layout

• wiring close-up before removal

• parameter information if available

• installation position and fixing holes

• elevator brand or control system reference

• fault code or failure condition from site

This inverter may be replaced when the elevator door has no movement, unstable opening or closing, abnormal speed, repeated door reversal, motor drive fault, damaged terminals, or poor response to open and close commands. However, door problems should not be judged by the inverter alone. Technicians should also check the door motor, belt tension, hanger rollers, door shoes, door lock, light curtain, power supply, and mechanical alignment.

For replacement work, it is recommended to record the wiring and parameters before removing the old unit. If parameter setting is required after installation, it should be handled by qualified elevator technicians according to the site condition and door operator system.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, clear photos of the old Panasonic inverter, motor label, connector area, and door operator assembly are recommended before shipment. This helps reduce wrong supply and supports faster elevator maintenance or modernization work.

FAQ

Are AAD03020DKT01 and AAD03020DT01 interchangeable?

Not automatically. The model suffix, wiring, connector layout, software version, and door motor matching should be confirmed before replacement.

What information should I send before quotation?

Please send the old inverter label, motor label, terminal photo, connector close-up, and door operator photo.

Is parameter adjustment required after replacement?

It may be required depending on the door system. The final setting should be checked by professional elevator technicians after installation.
